The yarn winding machine has a special purpose in the textile industry. It is the link connecting the two processes of spinning and weaving, so it plays an important role in the textile industry. The working principle of the winding machine is to change the package and increase the yarn package Increase the yarn capacity and remove the defects on the yarn to improve the quality of the yarn. The main task of the winder is to wind and connect the bobbins with less capacity.

The yarn winding machine has a special purpose in the textile industry. It is the link connecting the two processes of spinning and weaving, so it plays an important role in the textile industry. The working principle of the winding machine is to change the package and increase the yarn package Increase the yarn capacity and remove the defects on the yarn to improve the quality of the yarn. The main task of the winder is to wind and connect the bobbins with less capacity.

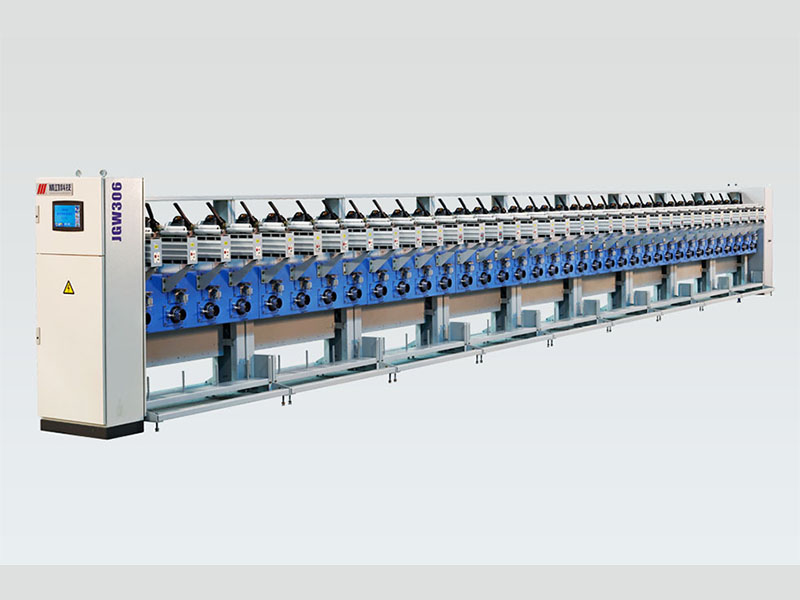

JGW306 Type Automatic Yarn Winding Machine

JGW306 Type Automatic Yarn Winding Machine is a mechanical and electrical integrated winding equipment. The whole machine adopts PLC single spindle independent control, and independently drives the three motors of wire guide, coiling and overfeeding. The process parameters can be adjusted flexibly, convenient.
The machine mainly uses chemical fiber filaments such as nylon and polyester; natural fibers such as cotton and hemp are suitable raw materials. After overfeeding, it is packaged into loose cheese yarn for dyeing; it is also equipped with functions such as fixed length and diameter. , of which the fixed-length accuracy reaches ≤5‰, which can meet the needs of unified packaging and whole batch warping. In addition, accessories such as oiling can be selected separately to meet various reversing needs. It is a rare product in modern textile, printing and dyeing, knitting and other industries...

Read More

Change the package during the winding work to increase the yarn capacity of the yarn package: connect the bobbins (or skeins) with less capacity through winding to make a larger-capacity bobbin, the capacity of a bobbin Equivalent to more than twenty bobbins. The bobbin can be used for warping, twisting, weft winding, dyeing, weft yarn on shuttleless looms and knitting yarn, etc. If the bobbin is directly used in these processes, it will cause too much downtime, which will affect the improvement of production efficiency and product quality. Therefore, increasing the package capacity is a necessary condition for improving the productivity and quality of subsequent processes.

Eliminate defects on the yarn and improve yarn quality: There are some defects and impurities on the yarn produced by cotton spinning mills, such as thick places, fine details, double yarns, weakly twisted yarns, neps, etc. Use the yarn clearing device to check the yarn during winding, remove the defects and impurities on the yarn that affect the quality of the fabric, improve the uniformity and smoothness of the yarn, and reduce the yarn breakage in the subsequent process , Improve the appearance quality of the fabric. It is most reasonable for the defects and impurities on the yarn to be removed in the winding process, because the work of each bobbin is carried out independently during winding, and when a bobbin is broken, other bobbins can continue to work without being affected .

Process requirements

The technical requirements for winding machine accessories are very strict, and wire climbing cannot occur during the traverse process. If it occurs, it will affect the unwinding process. During the winding process, there should be no hard edges to prevent affecting the dyeing process. The yarns cannot be overlapped, otherwise the friction of the yarns will be aggravated and the winding will vibrate.

Winder accessories need to be effectively controlled during use and strictly followed the production process. As a special equipment, the winding machine is the most basic requirement of the process to ensure its normal operation, and it is also the basis for realizing the entire textile process.
