The yarn winding machine is a special equipment in the textile industry. As the last process of spinning and the first process of weaving, winding plays the role of bridge linking the previous and the next, so it occupies an important position in the textile field.

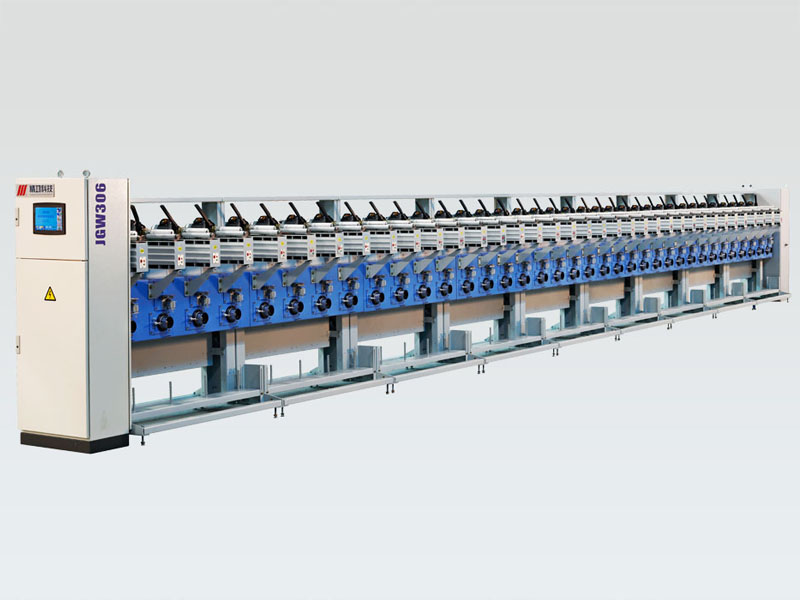

What's Yarn Winding Machine?

The yarn winding machine is a special equipment in the textile industry. As the last process of spinning and the first process of weaving, winding plays the role of bridge linking the previous and the next, so it occupies an important position in the textile field.

Textile Winding Machine, Automatic Yarn Winding Machine

HKV101D Automatic Yarn Winding Machine

HKV101D Automatic Yarn Winding Machine is the front-end equipment of covered silk machine, fancy twisting machine, etc. It is suitable for the winding of chemical fiber, blended spinning, cotton yarn and other raw materials. It adopts computer control mode and has the advantages of simple operation, high efficiency, small footprint, etc. advantage....

Read More

The main task of the yarn winder:

1. Change the package and increase the yarn capacity of the yarn package:

The bobbins (or skeins) with less capacity are connected by winding to make bobbins with larger capacity. The capacity of one bobbin is equivalent to more than 20 bobbins. The package can be used for warping, doubling, weft winding, dyeing, weft on shuttleless looms, and knitting yarns. If the cops are used directly in these processes, it will cause too much downtime, which will affect the improvement of production efficiency and the improvement of product quality. Therefore, increasing the package capacity is a necessary condition for improving the productivity and quality of the subsequent processes.

2. Remove the defects on the yarn and improve the quality of the yarn:

There are some defects and impurities on the yarn produced by cotton spinning mills, such as thick places, fine details, double yarns, weak twist yarns, neps, etc. When winding, the yarn clearing device is used to check the yarn, remove the defects and impurities on the yarn that affect the quality of the fabric, improve the uniformity and smoothness of the yarn, and help reduce the yarn breakage in the subsequent process. , to improve the appearance quality of the fabric. It is most reasonable for the defects and impurities on the yarn to be removed in the winding process, because the work of each bobbin is carried out independently during winding, and when a certain bobbin is dealt with broken ends, other bobbins can continue to work without being affected.

Technical requirements for textile yarn winding machine:

1. Appropriate winding tension will not damage the original physical and mechanical properties of the yarn.

2. The package capacity of the bobbin is large, the shape is good, and it is easy to unwind.

3. The yarn joints are small and firm, and try to form knotless yarns.

4. The length of the bobbins used for warping should be fixed, and the bobbins used for dyeing should have a uniform structure (even roll density)
