Texturing Machine

JGT1000x Yarn Draw Texturing Machine is mainly used to process poy yarn (polyester preoriented filament) into dty polyester stretch yarn (dty polyester stretch yarn) with low elastic energy through stretching and false twist deformation. At the same time, the spandex yarn and dty wire are directly compounded on the machine. Through the network nozzle, elastic and spandex network can be processed in one step.

Equipment general situation

JGT1000x Yarn Draw Texturing Machine, Air Texturising Machine is mainly used to process poy yarn (polyester preoriented filament) into dty polyester stretch yarn (dty polyester stretch yarn) with low elastic energy through stretching and false twist deformation. At the same time, the spandex yarn and dty wire are directly compounded on the machine. Through the network nozzle, elastic and spandex network can be processed in one step.

Performance and characteristics of the main components of the equipment

1、spandex feeding device

The spandex feeding device is driven by a single spindle independent motor, and each spandex wire is driven by an independent motor. The ab surface device can be controlled independently to ensure the stability of spandex wire feeding and uniform drafting.

2、 w2x structure

Double w2 roller structure is adopted to improve network quality and ensure yarn quality.

3、there are two kinds of silk frames for users to choose from, fixed and rotary.

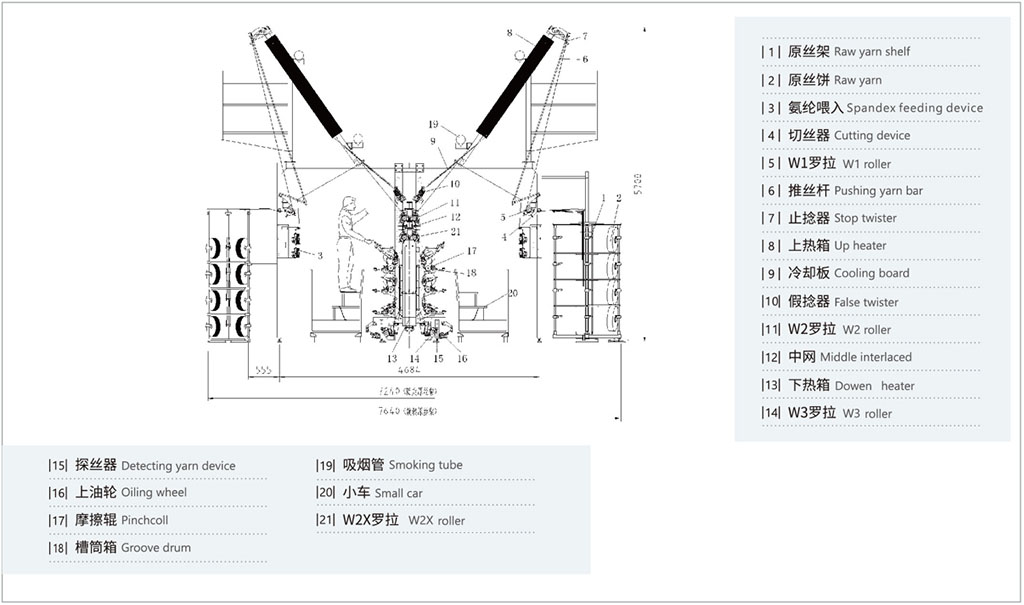

Dimension

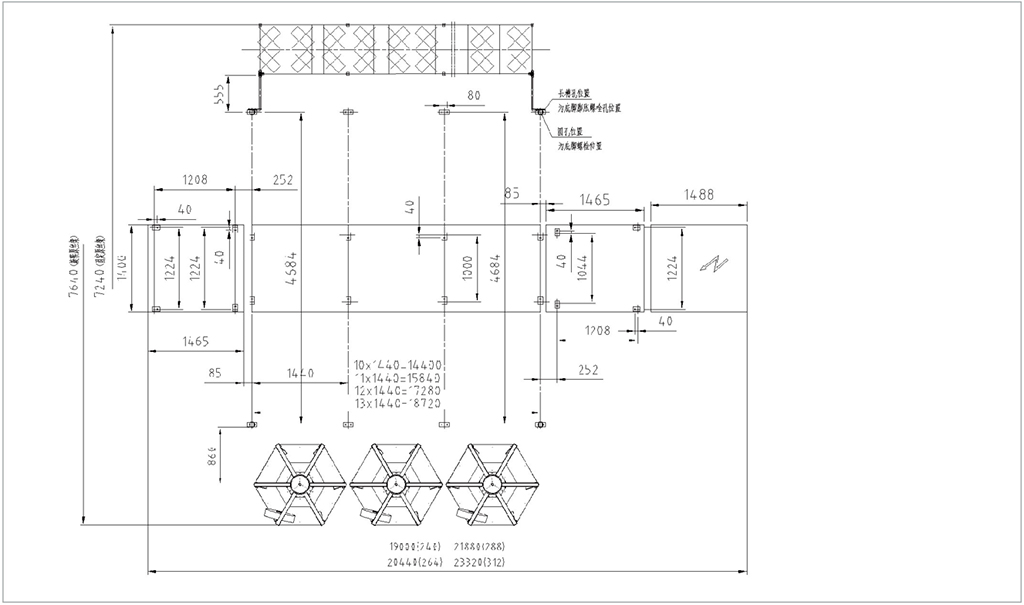

Installation footing plan
