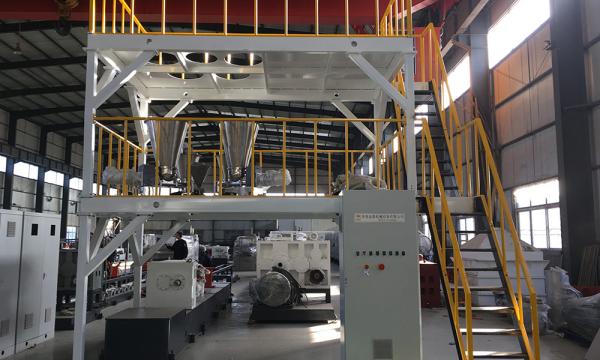

XPS Foam Board Making Machine
75/150
1. Automatic Feeding Machine
2. Surface Grooving Machine
3. Surface Milling Machine
4. Edge Trimming Machine (SL, TG, RC)
5. Milling Machine
6. Embossing Machine
7. Auto stacker
8. Slice Cutting Machine
9. Powder Recycling & Granulating Unit (High Capacity5-6ton/day)
10. Margin Recycle Machine
11. 11. 90C Cutting Machine
12. Auto packing machine
13. Dust collection system
Cold storage
The xps extruded foam board is indispensable in the construction of cold storage. It not only plays a role in heat insulation but also because of the microporous structure on the surface of the xps foam insulation board. It can slow the condensation of water vapor and reduce the formation of water droplets.
Special conditions for cold storage xps extruded boards are relatively high, and the thickness needs to be more than 10 cm. Therefore, in the construction of cold storage, two layers of xps extruded plates are usually used. One reason is to increase the thickness, and the other is to double-layer extruded sheet with staggered stitching to increase heat insulation to prevent temperature loss.
Road foundation
XPS extruded board can be used as foundation pavement, airport road expressway, etc. The extruded board is waterproof and moisture-proof. It cannot be degraded and impermeable for up to 50 years. These advantages effectively alleviate the ground collapse caused by road leakage.
Decorative extruded board
Extruded polystyrene foam board can be used for home floor decoration. First of all, the XPS extruded board is softer, and there will be a certain buffer when people step on it. The closed-cell honeycomb structure of the extruded polystyrene insulation board can ensure that only a thin layer is required to achieve good thermal insulation and waterproof effect. There is a limit to the height of the interior. For home decoration, the thinner the foundation, the larger the indoor space.
In short, the xps foam insulation board is suitable for the situation where the insulation layer needs higher compression resistance. It has been widely used in wall insulation, concrete roof, steel structure roof insulation, low-temperature storage ground, parking platforms, airport runways, highways and other fields of moisture insulation. XPS insulation board is one of the best building energy-saving materials in the building materials market.
Model | Primary Extruder Screw | Secondary Extruder Screw | Product Width (MM) | Product Thic kness(MM) | Output(KG/H) | Size(M"M"M) | Weight(T) |
| SXPS -75/150 | 75 | 150 | 600~1200 | 17~100 | 200~400 | 60*10*4 | 26 |
| SXPS -75/200 | 75 | 200 | 600~1200 | 20~120 | 300~500 | 70*10*4 | 31 |
| SXPS -95/250 | 95 | 250 | 600~1500 | 20~150 | 400~700 | 80*12*4 | 37 |
