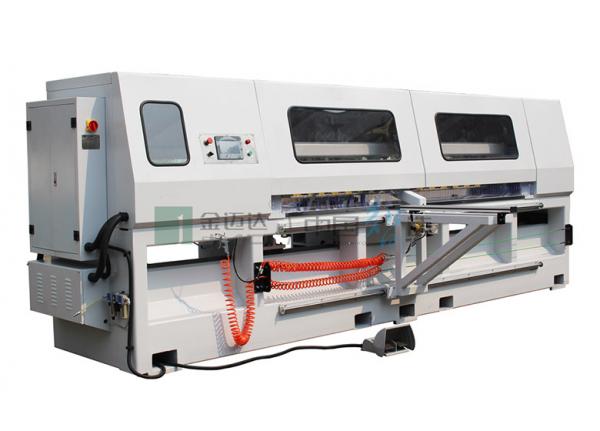

Wooden Sash Milling Machine for Solid Wood Doors and Windows

MXSWA-2800

Wooden Sash Milling Machine for Solid Wood Doors and Windows
Wooden Sash Milling Machine for Solid Wood Doors and Windows
Wooden Sash Milling Machine for Solid Wood Doors and Windows
Wooden Sash Milling Machine for Solid Wood Doors and Windows
Get Quote

1.Mainly used for milling solid wood doors and windows sash.
2. The cutter feeding by variable frequency stepless speed regulation with wide speed range, which is suitable for processing all kinds of soft and hard wood.
3. The cutter adopts HIWIN linear guide rail and cooperates with synchronous belt to ensure the cutting more stable and smooth.
4. Adopt high precision and high speed spindle by professional manufacturers.
5. Equipped with a dust collective device to effectively ensure the work environment clean and tidy.

Power supply

Three-phase four wire AC380V 50Hz

Input power

12.1kW

Air pressure

0.5~0.8Mpa

The milling cutter speed

5500r/min

The max diameter of the cutter

280mm

The clamping diameter of spindle

Φ40mm

The max depth of milling

100mm

Milling range of working table

2800mm

Overall dimension

5400×2600×1800mm

Weight

3600kg
