wind turbines 25kw, on/off grid working system - 25kw
wind turbines 25kw, on/off grid working system For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale wind turbines 25kw, on/off grid working system, Made in China, High Quality Products!, China 25kw wind turbine, wind generator 25kw Supplier, Manufacturer.
25kw wind turbine normal data:
Upwind wind turbine
Model: FD10-25kw
Rotor Diameter: 10m (32ft)
Number of Blades: 3PCS
Material of Blades: Fibre glass expoxy
Cut-in wind speed: 3m/s
Working wind speed: 4-30m/s
Survival wind speed: 50m/s
Rated wind speed: 12m/s (27mph)
Rated rotate speed: 185r/min
Rated output power: 25kw
Max output power: 30kw
Type of tower: Manganese steel independence tower
Type of generator: Permanent-magnet 3 Phase AC
Speed regulation method: Yaw
Stop method: Brake by hand drag
Working voltage: DC500V
Tower height: 15m,18m,20m,24m, 25m(optional)_________________________________________
Note:
1. Stand alone tower, tower height can be request according to installation site.
2. working voltage can be special requested;
3.Ce,ccc,iso approved
4. For on-grid working system data, pls contact with us.
5. Application in US, italy, UK, China, Japan, Finland, Ukraine...place
For output power curve, pls conact with us
Ningjin Huaya Industry Co., Ltd
Address: Jie shi Pai, North Huancheng Road, Ningjin County, Dezhou, Shandong, China, 253400
Tel: 0086-532-82903820
Huaya factory owns over thirty years practical experience in technical research,development and application of samll wind turbines.Also we have a strong R & D team to give our wind turbine tech supports.Now We have already exported more than 20 countries.
We are not only provide the wind turbine, also provide technical training and support. Our aim is provide the suitable and steady working system to user.
Steady working system; High quality product;Technical support.
Huaya company manufacture and provide:

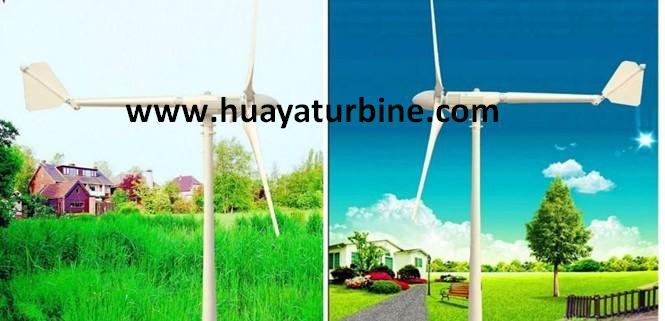

1. Horizontal axis wind turbine 300w-30kw
2. Vertical axis wind turbine 1kw, 2kw, 3kw, 5kw
3. Pitch controlled wind turbine 3kw-50kw
4. wind and solar hybrid working system 500w-20kw
5. Wind turbine water heating system1kw, 2kw, 3kw, 5kw
6. Wind turbine Controller 300w-50kw
7. Wind turbine blades D-2.2m-12m
8. Permanent magnet generator 300w-50kw
9. Wind turbine tower
10. Certifications: ISO, CE, CCC, CNACL certification.
11. Guarantee: 3 years
12. Full English version operation manual. Specialized engineer help you to know all the points of small wind turbine system.
You can take the whole system from us, also you can take any parts of the wind turbine from us, pls note!
