The equipment for producing insulating glass includes glass cutting machine, edge grinding machine, glass cleaning machine, glass loading and unloading machine, aluminum strip bending machine, molecular sieve canning machine, butyl rubber coating machine, lamination press, insulating glass sealing machine, etc.

Insulating glass production equipment refers to the mechanical equipment used to process insulating glass.

The equipment for producing insulating glass includes glass cutting machine, edge grinding machine, glass cleaning machine, glass loading and unloading machine, aluminum strip bending machine, molecular sieve canning machine, butyl rubber coating machine, lamination press, insulating glass sealing machine wait

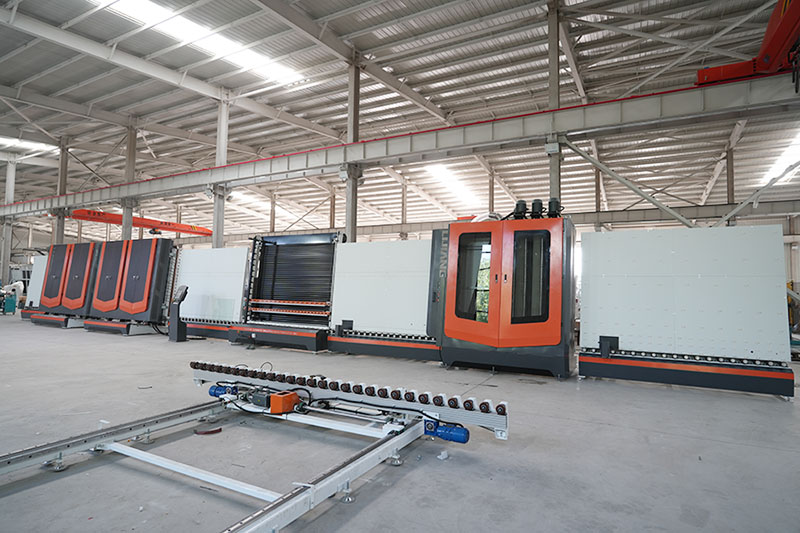

Introduce several insulating glass production line equipment:

1. Cutting machine

The cutting machine is used for cutting the original glass sheet, and the cutting size and shape are set according to the specifications of the produced glass.

2. Edging machine

It is mainly used for grinding and polishing the bottom edge and chamfer of ordinary flat glass. It is one of the cold processing equipment widely used in glass machinery deep processing equipment.

3. Glass washing machine

Glass washing machine is a necessary equipment for efficient glass cleaning and drying. Now most of them use vertical washing machines, which can carry out continuous production of glass feeding, cleaning, drying and discharging. That is simple and fast. The cleaning machine is made of stainless steel, double-layer bottom plate, integrated laser molding technology, and upper transmission mode, so there will be no water leakage. The transmission system adopts intelligent frequency conversion speed regulation to realize the high-efficiency application of the cleaning machine. High-pressure circulation fan, double air knife and double fan are used to improve the quality and efficiency of air-drying. High temperature resistant 1010 brush filament, easy to clean LOW-E and coated glass

4. Glass loading and unloading machine

It solves the possible injury and property loss caused by manual loading and moving of glass, and realizes intelligent and fully automated glass production. It greatly reduces the labor intensity of workers, and has the advantages of small investment and significant efficiency.

5. Aluminum strip bending machine

CNC servo motor feeding, CNC bending angle control system. Four storage tanks can store 4 different specifications of aluminum strips respectively. It can fold triangles, giant shapes, regular pentagons, main sides, arcs and other shapes.

6. Molecular sieve canning machine

It is a must-have equipment in the production of bent insulating glass. The middle of the back of the aluminum strip is punched, canned, and automatically sealed.

It can be filled with automatic bending and forming aluminum frame and ordinary straight angle aluminum frame. Filling under airtight conditions solves the problem of failure of the desiccant water tank, improves the efficiency and the life of the insulating glass.

7. Butyl rubber coating machine

Butyl adhesive coating machine is to apply butyl hot melt adhesive evenly on the aluminum spacer frame of insulating glass. This machine is a semi-automatic tape coating machine, that is, the aluminum spacer frame is manually supported for side-by-side operation. It is the equipment for applying the first sealant on insulating glass.

8. Composite tablet production line

The cleaned glass reaches the light inspection section through the conveying section, which is convenient for more intuitive inspection of the cleaning quality of the glass. Automatically convey the upper aluminum frame intelligent lamination of the lamination section, enter the plate pressing section for lamination, and the laminated two-glass or three-glass insulating glass goes to the next link for gluing.

9. Insulating glass sealing line

The second sealant for insulating glass, the glue application system can be connected with the production line to improve production efficiency. It has the function of automatic glue filling and automatic glue adjustment to save labor. The standardized assembly line is incomparable in terms of quality and cost.
