UPDATED BATTERY POWERED CRIMPING & CUTTING TOOL
PZ-2430C
24kN Powerful Output
TWO-IN-ONE
Applicability more extensive
| Rated pressure: | 24kN |
| Stroke: | 30mm |
| Rated power: | 270W |

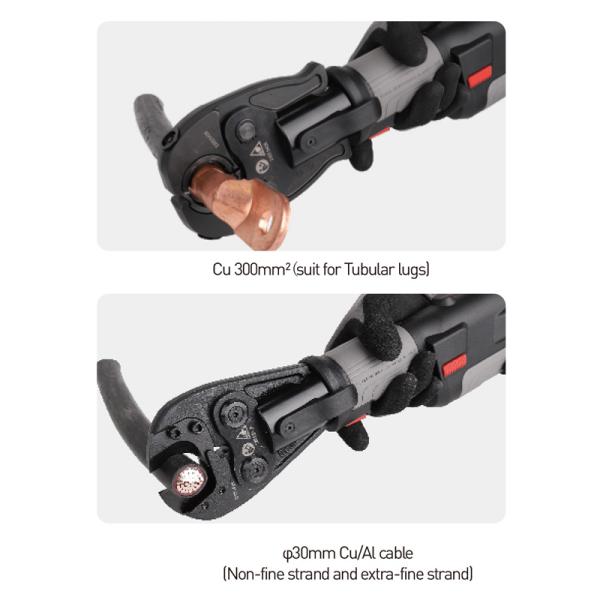

| Max. crimping range: | Cu 300mm² |
| Max.cutting range: | φ30mm Cu/Al cable (It is not suitable for cutting fine strand and extra fine cables) |
| Battery: | 18V 2.0Ah Li-ion |
| Charging voltage: | AC100-240V 50-60Hz |
| Charging time | Approx.40mins |
| Weight: | 3.85kgs(tool with battery and cutting head) |
| Tool size: | 362x122x76mm) |
| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm² |
| Crimping head: | 1pc |
| Cutting head: | 1pc |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring: | 1set |
