1. General Description

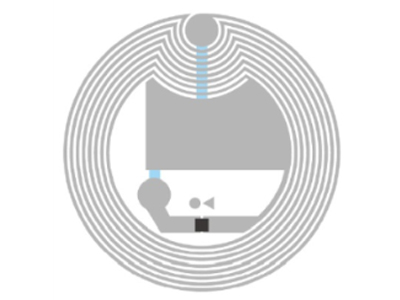

YFNFC02B is a small form factor NFC tag (RFID) module for consumer or PC peripheral devices. With the printed antenna on the module, the user can use it easily to be the short distant tag (up to 62.5px). With those 2 pins connecting to a trigger circuit, it can act as a pairing mechanism for Bluetooth Simple Secure Pairing device.

Contactless Interface
? Physical Interface and Anticollision compliant to ISO/IEC 14443-3 Type A
– Operation frequency 13.56 MHz
– Data rate 106 kbit/s in both direction
– Contactless transmission of data and supply energy
– Anticollision logic: several cards may be operated in the field simultaneously
? Unique IDentification number (7-byte double-size UID) according to ISO/IEC 14443-3 Type A
? Read and Write Distance up to 2.5 cm and more (influenced by external circuitry i.e. reader)

152 bytes EEPROM
? Organized in 38 blocks of 4 bytes each
? 128 bytes freely programmable User Memory
? 24 bytes of Service Area reserved for UID, Configuration, LOCK Bytes, OTP Block and Manufacturer Data
? Read and Write of 128 bytes of User Memory in less than 100 ms
? Programming time per block < 4 ms
? Endurance minimum 10,000 erase/write cycles)
? Data Retention minimum 5 years)

Privacy Features
? 32 bit of One Time Programmable (OTP) memory area
? Locking mechanism for each block
? Block Lock mechanism
? Optional 32 bit Password for Read/Write or Write access
? Optional Password Retry Counter
? Optional 16 bit Value Counter

Data Protection
? Data Integrity supported by 16 bit CRC, parity bit, command length check
? Anti-tearing mechanism for OTP, Password Retry Counter and Value Counter

Support
? ISO/IEC 14443-3 Type A
? ISO/IEC 18092
? NFC Forum? Type 2 Tag Operation
