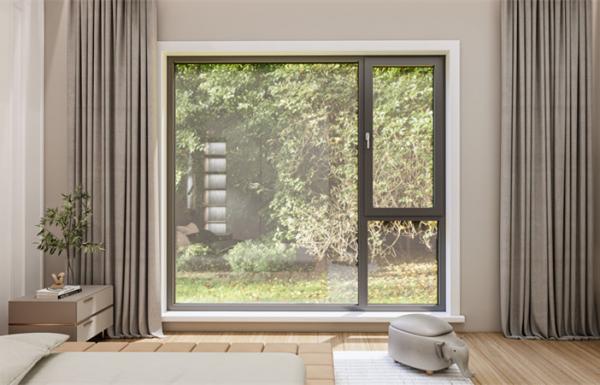

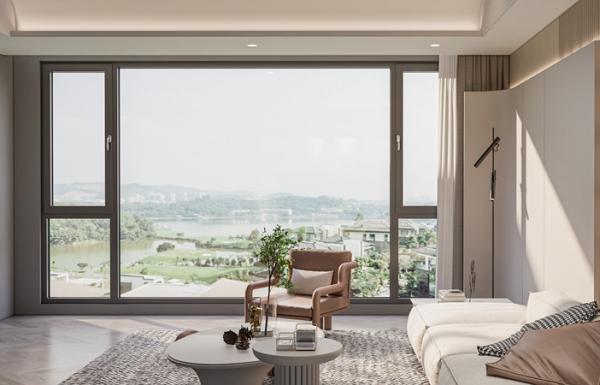

Tilt & Turn Thermal Break Aluminum Window With Mesh
T66-110

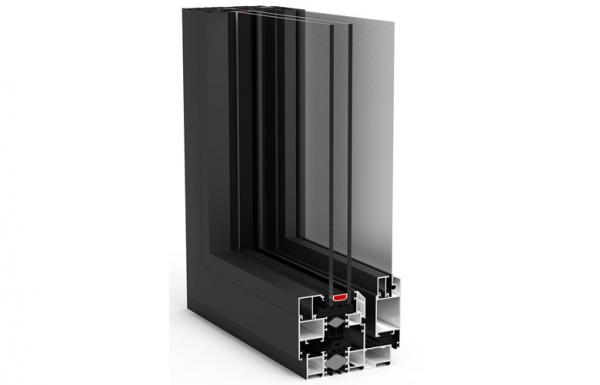

1. Insulation: 3-hollow + 2-sealing
2. Hidden water drainage hole
3. Sealing: integral-bending isobaric strip + EPDM foam strip + sealing deflector
Configuration
Series | T66-110 Tilt & Turn with Mesh | Glass Spacer Color | Silver/Black |
Hardware | Germany SIEGENIA Hidden Hardware /Belgian Sobinco Hidden Hardware
| Sealing strip | Outside of glass: EPDM foam co-extrusion strip with nylon tensile cord Isobaric strip: Integral-bending EPDM foam strip Inside of glass: Serrated EPDM strip |
Handle | Germany HOPPE | Mesh | Transparent mesh(wire diameter 0.8mm/0.5mm) |
Glass | 5G+18A+5G Low-E / 5G+112A+5G+12A+5G Low-E | Aluminum Extrusion | European ultra-premium standard; alloy 6060-T6; sandblasting pre-treatment + powder coating finish |

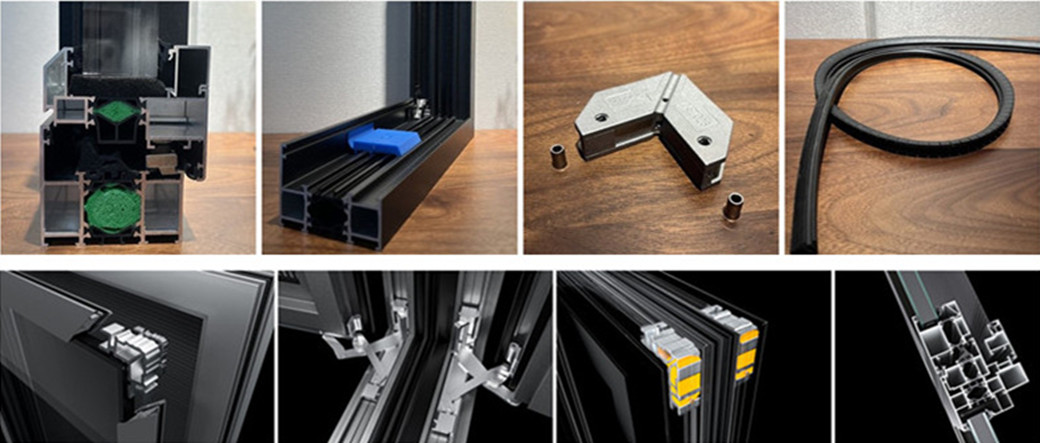

Details

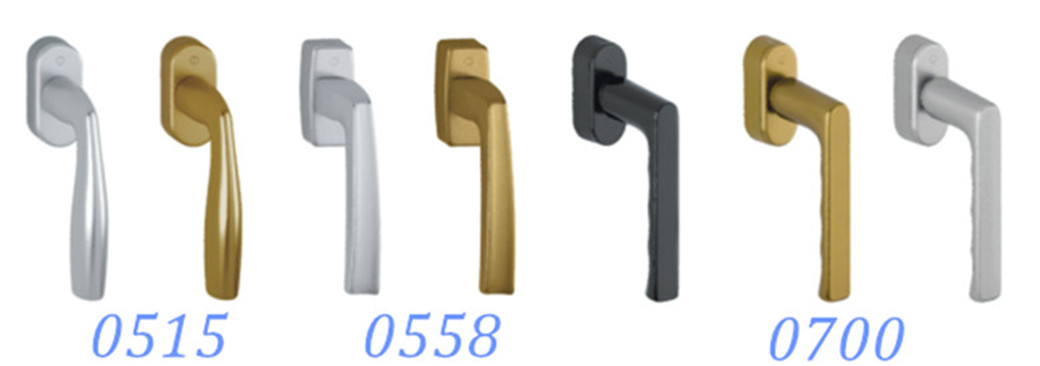

Handle Optional
Window Color Optional

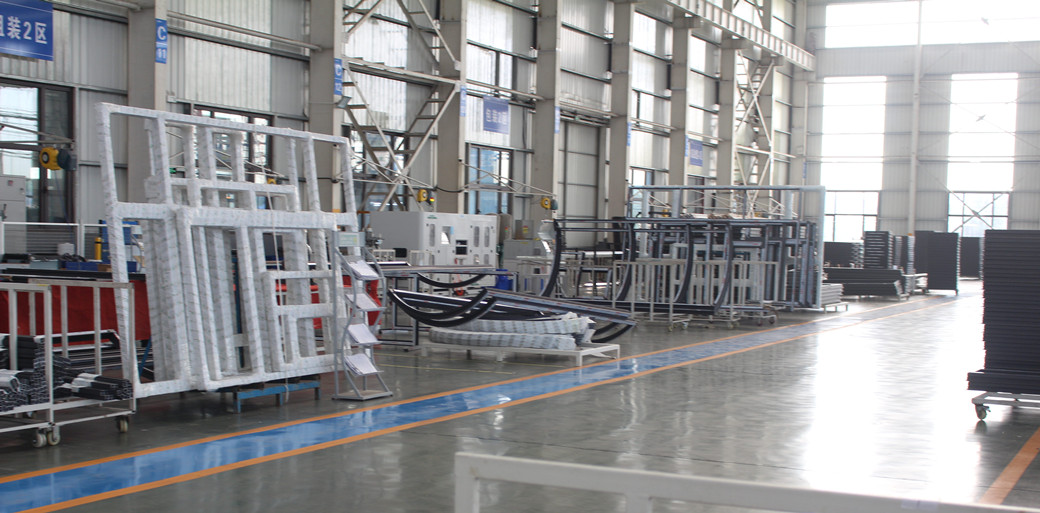

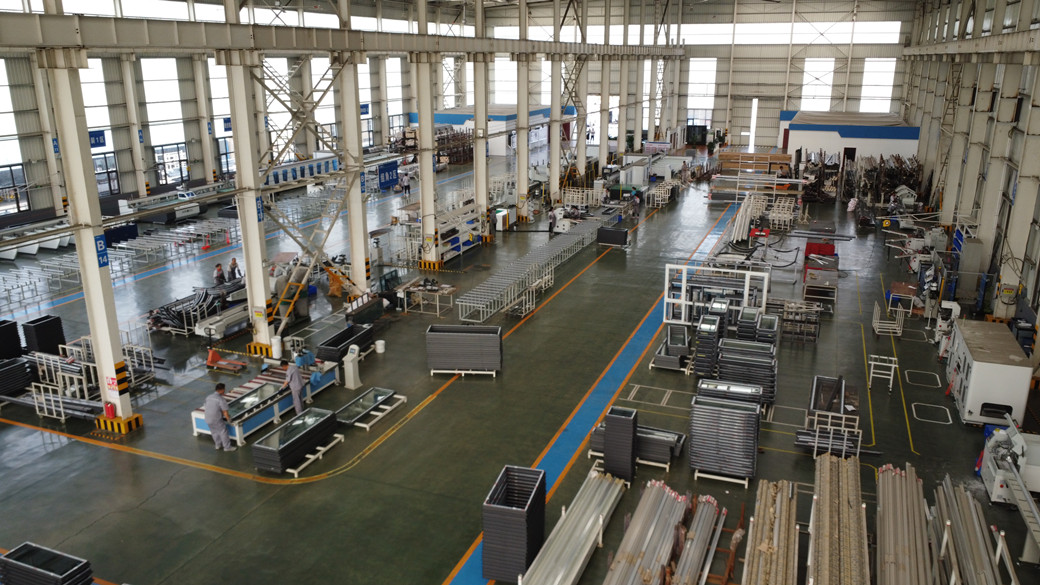

Our Company
