The pig launcher&receivers device

The design of the launcher & receiver saddle is according to the combined loading of the tube weight, water filling weight and the maximum weight of the pipeline cleaning pig. The launcher use eccentric bottom flat reducers, while the concentric reducer for the receiver.
We install the anti-collision device on the Quick Opening Closure (patent no. : 03210870.2) of the receivers to avoid the damage of the plate or the pipeline cleaning pig from hitting when cleaning. Inner surface of the launcher & receiver should keep smooth, without any bump to block the passing of the pipeline cleaning pig. Also, the maximum size of bump in the joints must less than 0.3 mm.
1. Design:
We use eccentric low sloper , wheel type ,clamp and locking ring fast-opening blind structure. Inside the launcher, to adjust the pig in reach best position and to resist the pig launcher, prevent fast-opening blind pig when they open the residual stress in the pipe under the action of return, avoid pig launcher in backwardness of pressure not to go out.
2. material:
Cylinder and the pipe run: Q345R 16Mn 20#
Quick opening closure: 16MnIII forge piece
Seal parts: NBR, TPFE
3. QS:
ISO9001
4. Codes and standards:
The design , manufacture, inspection and test of pig launcher&receivers device fully meet the requirements of
the latest edition of the following codes and standards:

Get Quote

Shenyang Wensheng Instrument and Equipment Co.,Ltd

Address: Da Dianzi village Dongling street Dongling district , Shenyang, Liaoning, China, 110000
Tel: 0086-24-31232904

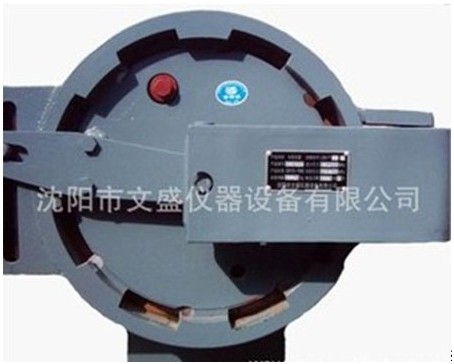

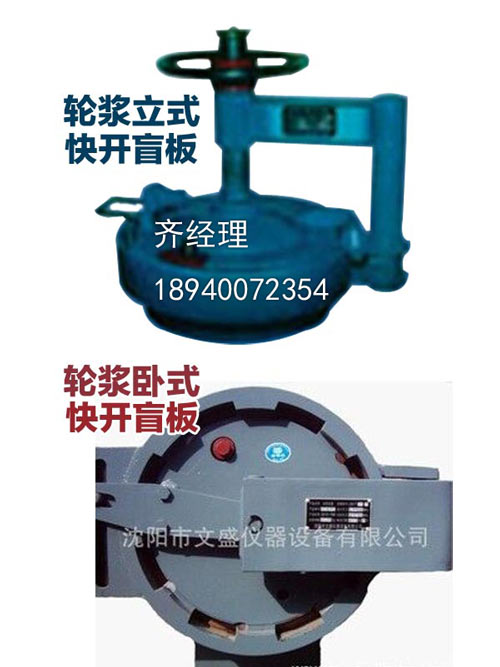

Shenyang Wensheng Instrument and Equipment Co.,Ltd is a joint-stock company in one of production and researching. It is a professional manufacturer of the equipments of petroleum and natural gas pipelines (non-standard). In the last ten years, we focus on researching and producing the equipments of petroleum and gas pipelines (non-stand), provide the whole sets of pigging instruments of long pipes, insulating joints and separating/percolating instruments for customers and complete before-sale and after-sale service; such as business consulting, equipment setting, installing and debugging, technology training, supplying the spare parts and expert guidance, etc. Through accumulating these experience and getting the information while the customers using the instruments, our productions have better quality after improve the technological level. The main technical index and capability have researched advanced standard. The LSM paddle wheel type translational sealing quick opening blind plate (patent number: ZL03210870.2), supporting wheeled pigging (patent number: ZL01212169.X) and variable diameter pigging (patent number: ZL03210871.0) have won kinds of state patents. Our company has obtain IOS9001:2000 certification in 2003, got the entrance permission for material market of oil fields and gas fields in China. The productions are widely used in many engineering projects, such as south oil to north in the project of Huabei Petroleum and the modification work of China navy 118 and so on. Due to the amplification of market demand, our company increases the investment of employee and basic installation. Now our company covers 7000 m2, has 2400 million yuan of asset and 1100 million yuan of fluid capital. We have complete production equipments and test to increase the whole strength and scale and realize the leap frog development. Quality is our life.
