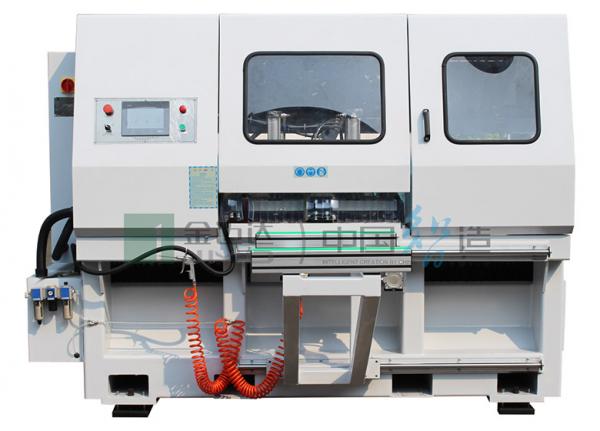

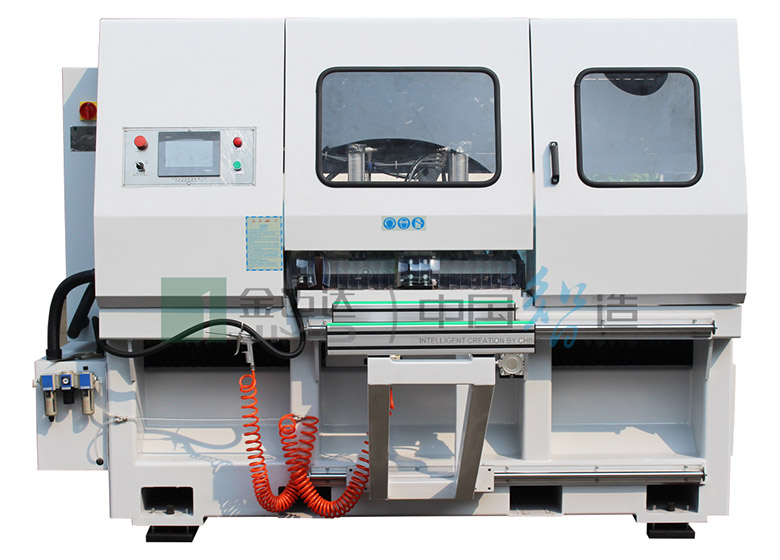

Tenoning Machine for Wood Door and Window

LMXD-280A

Tenoning Machine for Wood Door and Window
Tenoning Machine for Wood Door and Window
Tenoning Machine for Wood Door and Window
Tenoning Machine for Wood Door and Window
Get Quote

1.Mainly used for end-tenon making for wood doors and windows profiles.
2. The cutter feeding by variable frequency stepless speed regulation with wide speed range, which is suitable for processing all kinds of soft and hard wood.
3. The cutter adopts HIWIN linear guide rail and cooperates with synchronous belt to ensure the cutting more stable and smooth.
4. Adopt high precision and high speed spindle by professional manufacturers.
5. Equipped with a dust collective device to effectively ensure the work environment clean and tidy.

Power supply

Three-phase four wire AC380V 50Hz

Input power

12.1kW

Air pressure

0.5~0.8MPa

The cutter rotating speed

5500r/min

The max diameter of the cutter

280mm

Spindle shank diameter

Φ40mm

The max depth of milling

100mm

Processing range

600mm

Overall dimension

2600×2500×1800mm

Weight

1900kg
