Steel Corrugated Pipe Forming Machine
CJ-100 Bellow Forming Machine

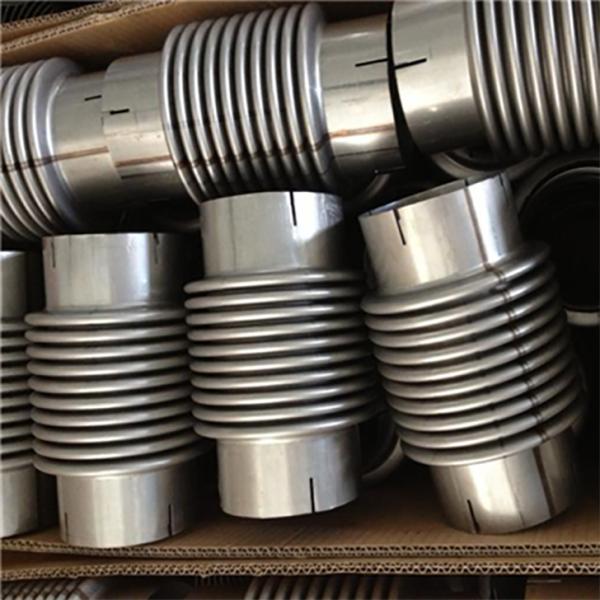

CJ-100 metal bellows forming machine, also known as an Automated Punch Former, is an efficient machine for producing metal bellows expansion joints from single or multi-layer tubes. It has a broad production working range with diameters from DN100mm to DN6000mm.
Advantages in technology:
1.Incorporates advanced bellows-making technology and is controlled by a Siemens controller for fully automated production.
2.Powered hydraulically, offering fast forming speeds and low noise.
3.The forming tools are made of high-strength die steel, ensuring a long service life.
4.Equipped with numerous safety precautions to guarantee the safety of personnel and equipment during the production process.
5.This machine can be customized according to the customer's specifications.
| Machine Model | CJ-100 |
| Thickness | Max. 0.5mm*2plies; Max. 1mm*1ply |
| Inner diameter | 100mm |
| Size Range | 6-25, 32-50,50-80, 80-100mm |
| Total Power | 7KW |
