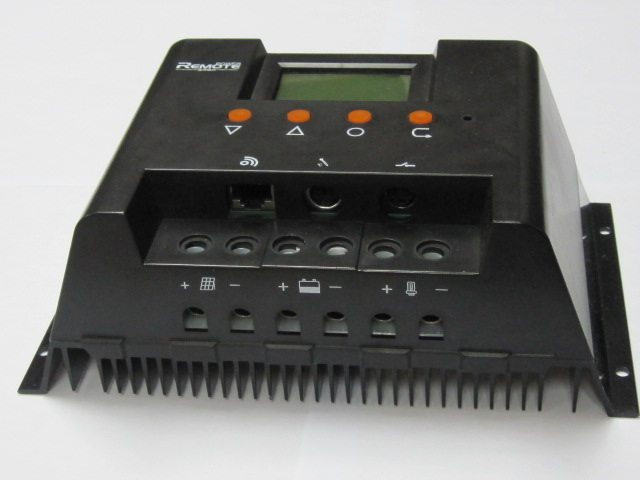

solar charge controller with lcd screen for solar power system, China solar charge controller with lcd screen for solar power system Supplier

solar charge controller with lcd screen for solar power system - SDY-SP

solar charge controller with lcd screen for solar power system For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale solar charge controller with lcd screen for solar power system, Made in China, High Quality Products!, China solar controller with lcd screen, solar charge controller for solar power system Supplier, Manufacturer.

Big LCD screen display
Connection to computer port
With relay function
Microcontroller and CPU software intelligent control
Protection against overload.short circuit and reverse connection
Temperature compensation
ISO9001 CE ROHS Certificate Approved

Specifications:
Type

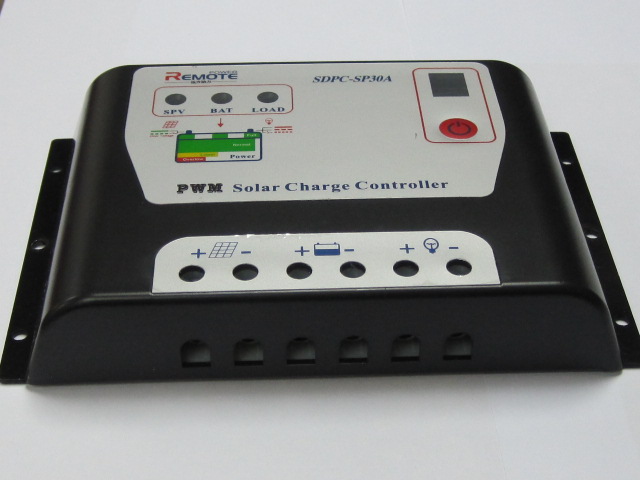

SDPC-SP-30A PWM
SDPC-SP-40A PWM
SDPC-SP-50A PWM

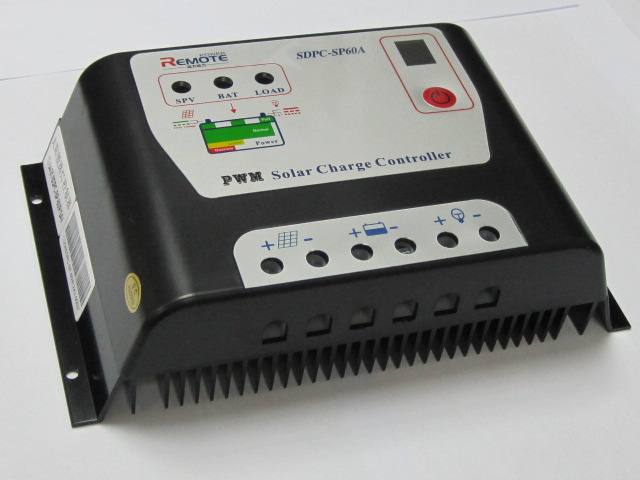

SDPC-SP-60A PWM
Rated charge current
30A
40A
50A
60A
Rated load current
30A
40A
50A
60A
Work voltage
12v; 12/24V 48v
Over load, short circuit protection
1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action.
No load current
≤6mA
Charging circuit voltage drop
≤0.26 V
Load circuit voltage drop
≤0.15 V
Over voltage protection
17V; ×2/24V
Work temperature
Industry stage:-35°C to +55°C;
Boost charge voltage
14.6V;×2/24V; (keep 10min)
Direct charge voltage
14.4V; ×2/24V; (keep 10min)
Float charge voltage
13.6V; ×2/24V;
charge return voltage
13.2v;×2/24V;
Temperature compensation
-5mv/°C/cell (Boost charge, Direct charge, Float charge, charge return voltage);
Lower voltage indicate
12.0V; ×2/24V;
Over discharge voltage
11.1V(no load)- real-time modified voltage by the discharge rate; ×2/24V;
Over discharge return voltage
12.6V; ×2/24V
Control mode
PWM charge mode; modified discharge voltage by the discharge rate

Get Quote
