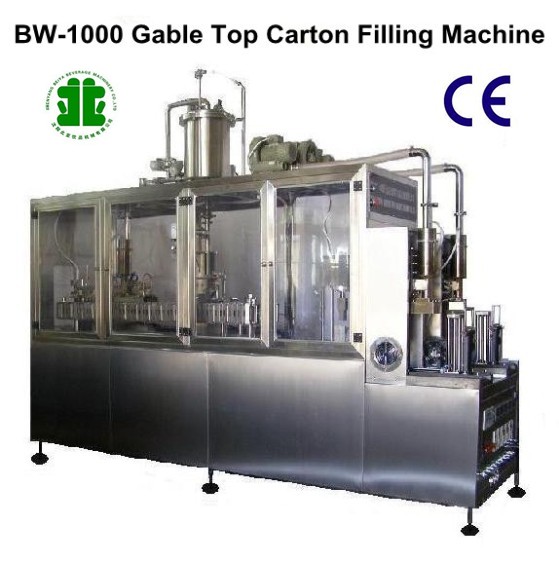

Semi-Auto Gable Top Carton Beverage Filling Machines (BW-1000)

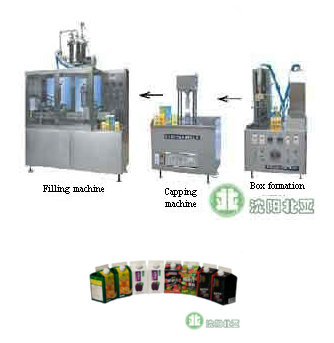

BW-1000 type Semi-Auto Gable Top Carton Beverage Filling Machines consist of three separate machines: Carton forming machine, capping machine and filling machine. The entire machine is made of 304 food-grade stainless steel. The surface is special processed to be beautiful and durable in use.

1. Work flow:
1) Carton Forming part: Cardboard -- Put the cardboard onto the mandrel (manually) -- Bottom heating -- Bottom sealing -- Top open carton
2) Capping part: Put the cap into the carton& acute;s capping hole (manually) -- Ultrasonic welding -- Top Open Carton with Cap (optional)
3) Filling part: Put the carton onto the conveyor (manually) -- Top preforming -- Filling -- Top heating -- Top sealing -- Date printing --Finished product

The operation of the filling machine is automatically controlled by computer program, and others are controlled by electric apparatus. The whole progress is controlled by PLC, needs 3 persons to operate.

2. Suitable for filling:

Milk, yogurt, cream, beaten egg, soy milk, juice, tea drink, corn drink, pure water, sauce, wine, cleaning solution, chemical product, sugar, grain, cornmeal, other dry powder, etc.

3. Technical parameter:

1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 800-1200 cartons/hour
3. Packing material: Cardboard carton / aluminium foil carton
4. Filling Temperature: Cold filling: 2-50 degC/ hot filling 88-92 degC
5. Cap: With capping / without capping (Optional)
6. Overall power: 23KW (three phases of electricity)
7. Size: (L*W*H): Carton forming machine: 1.3m*0.9m*1.5m
Capping machine: 0.8m*0.6m*1.2m
Filling machine: 2.0m*0.9m*2.6m
8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 0.8-1.0M3/min, without oil, water and dust
9. Cooling water: Flow volume: Less then 20L/ min Temperature: Normal temperature
10. Net Weight: 1200kg (carton forming machine: 300kg, capping machine: 100kg, filling machine: 800kg)

Get Quote

Shenyang Beiya Beverage Machinery Co.,Ltd

Address: No.32 Tawan Street,Huanggu District., Shenyang, Liaoning, China, 110035
Tel: 86-24-86748080
Shenyang Beiya Beverage Machinery Company is the earliest to research and design gable top carton filling machine in domestic market. It is a high technology company combining production and R&D as an integrated construction. Through introducing foreign advanced technology and independent R&D, Beiya designed and produced the first set of gable top carton filling machine, breakthrough the situation that this kind of filling machine monopolized by foreign products. Proved by application practice of internal over 258 customers, this filling machine function and quality have reached, even surpassed similar products in foreign countries, with a price one third of foreign equipments. At its excellent function and price effectiveness, it is extensively welcomed by internal and external customers. Beiya company is located in Shenyang, which is a famous machinery equipment manufacturing base in China. High level R&D research team, high performance machinery processing equipments, high quality production worker team, all of which maintain Beiya products閳?technology and quality level at a high starting point and in a high standard. The major products of Beiya are gable top carton filling machine series, which is mainly applied in diary food, beverage, condiment, liquor and cream such industries. Beiya, at the believe of incerity bringing out trust and trust bringing out the future is willing to serve the customers and reward the society with the best quality products and the best service.
