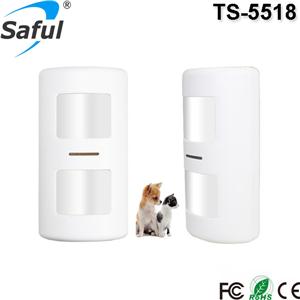

Alarm

Features
1.Duilt-in 2 newly-developed dual element passive infrared sensor unit;Intelligent MCU inside, increased anti-light interference and eliminate false alarm;
2.Adopts Pet Immunity technology and specialized optical lens for eliminate false alarm;
3.Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
4.Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
5.Internal Wireless Antenna, long distance transmission;
6.Wireless transmitting digital signal to control panel;
7.Learning code, easy to assign to the alarm panels;
8.SMT adopted, RF and EMI Immunity;
9.Low power consumption.2 pcs AAA battery
10.Low power alarm;

Specifications

Operating Voltage: 3VDC 2pcs AAAbattery
Detection Range: Vertical angle 60degree, Horizontal angle 110 degree, 12m at 20°C.
Standby Current: less than 100uA
Alarm Current: less than 9.5mA
RF Immunity: > 30V/m 0.1-500MHz
Sensitivity: > 3300V/W
Noise(Vp-p): <200mV, (mVp-p)(25°C)
Anti white light: >10000Lux
Transmitting Freq.: 315/433/868MHz
Transmitting Distance: minimum 100m( in the open area)
Pet Immunity: ≤25Kg
Temperature Range: -20°C ~ +55°C
Relative Humidity: 95% (25 °C)
Installation Mode: Wall mounted by bracket
Battery: 2*1.5V AAA battery
Installation Height: 1.8~2.4m


Packaging & Shipping
Wireless PIR Sensor *1
AAA Battery *2
Mounting Bracket *1
Screw head *2pcs
User Manual (English) *1
