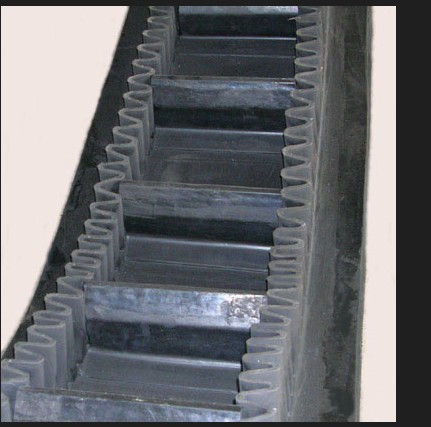

Rubber loose sidewall used on the corrugated belt - QBF009
Rubber loose sidewall used on the corrugated belt For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale Rubber loose sidewall used on the corrugated belt, Made in China, High Quality Products!, China sidewall, rubber sidewall Supplier, Manufacturer.
Sidewalls

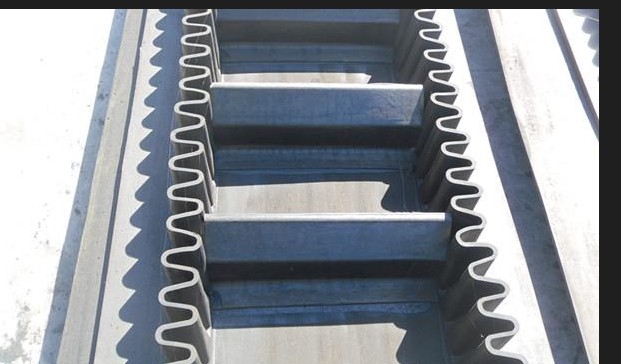

SINO-Wall Sidewalls have 4 basic product groups as below shown . If purchased as loose profiles the Sidewalls are packed in special way, there is not normally any minimum order quantity, however for special qualities please enquire before ordering.
The Sidewall design gives maximum flexing without fatigue, the profile has excellent vertical stability for load retention and support of return side. The design allows for high compression to ensure smooth inner deflection around small radii. Another important design feature is the Sidewalls can be pressed from both sides when mounting, this offers much higher bond strengths and security.
The fabric insertion is of the diagonal type which gives good tear resistance and allows the Sidewall to flex more easily.
The rubber compounds used have been tested to ensure maximum flexibility along with high abrasion resistant and high tensile strength,etc.
Type S: Standard Construction in heights from 40mm to 120mm.
Type LSF: Standard construction but with Diagonal Fabric Reinforcement for light duty application.
Type MDSF: Middle duty construction including fabric reinforcement as standard in heights from 120mm to 300mm.The fabric reinforcement is of the diagonal type ensuring maximum flexibility with high vertical stability. If required these can be supplied without fabric reinforcement to special order, Ref: HDS.
Type HHDF: Heavy duty Special design including fabric reinforcement as standard in heights from 300mm to 630mm.
Rubber Qualities:
Black Standard High Abrasion Resistant
Black Oil and Fat Resistant.
Heat Resistant to 100°C
High Heat Resistant to 150°C
Flame Retardant
Other qualities may be available to special order, please enquire.
Qingdao Best Friend rubber & Plastic Co.,ltd
Address: jiaozhou office, qingdao city, shandong china, qingdao, Shandong, China, 266109
Tel: 8653266739753

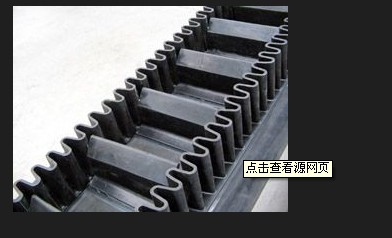

QBF-SINO WALL has been committed to the development of the Sidewall Conveyor Belt system and lead the latest developments in steep angle conveying using the Sidewall Conveyor Belt System in China based on decade years working experiences with customer in the global market.
For base belt, we also carefully select the correct rubber compounds for the sidewalls & cleats in terms of strength, flexibility and abrasion resistance. These compounds can be modified to suit certain specific requirements, such as where material is hot nor where there is a risk of fire.
The sidewalls and cleats are designed in accordance with the function they are required to carry out. The purpose of the sidewalls is to retain its load at the edges of the pocket yet being extremely flexible in order to negotiate the bend points on this type of conveyor. The cleats are required to support the load and these are often individually moulded to a specific design so that they retain their shape even when operating vertically with high density materials.
The sidewalls and cleats are attached to the base belt as a result of a special hot vulcanizing process. This gives the higher adhesion values and can be an advantage when material has high temperature.
As a result of manufacturing within China, we are able to offer a high quality product at a competitive price level follow the export standard , and this also provides a quick response service when required.
