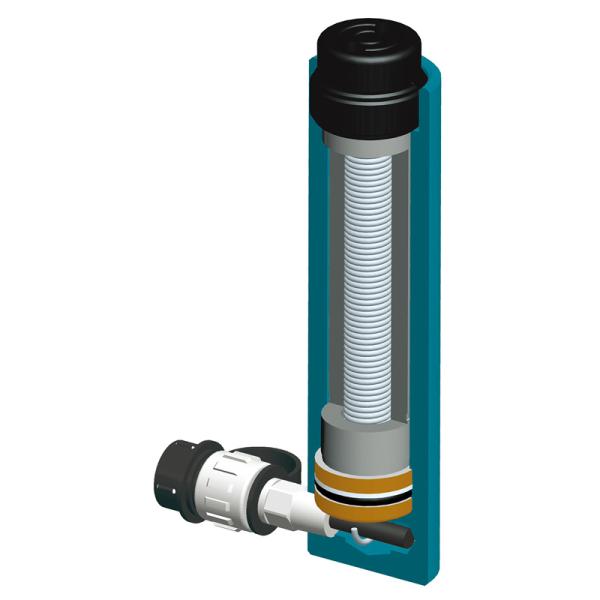

RSC-SINGLE HYDRAULIC STEEL CYLINDER
RSC series

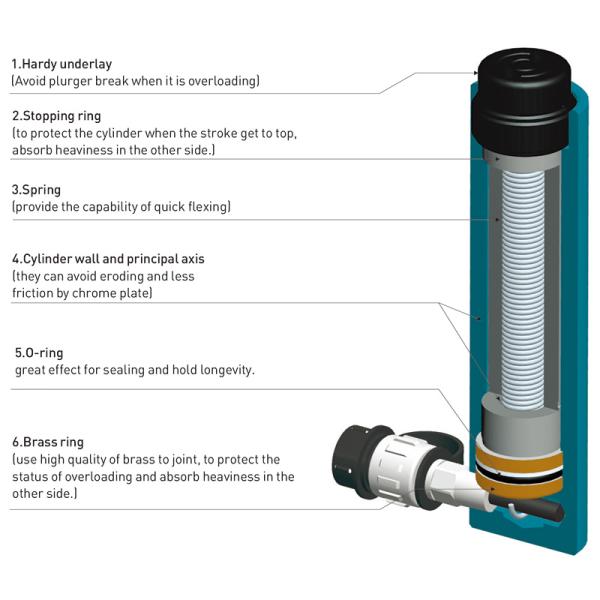

● The surface of principle axis is finished with chrome plate to protect the using of longevity of the product.
● Principle axis has the function of retracting automatically.
● Surface coating resists corrosion, extending cylinder life.
● Hardy underlay to avoid axis break when it is overloading.
RSC-single Hydraulic Steel Cylinder
| Item/no | Output (t) | Stroke (mm) | Effactive area (cm²) | Oil capacity (l) | Height of Product (mm) | Extended Height (mm) | Outside dia (mm) | Bore dia (mm) | Principal axis Dia(mm) | Oil supply hole Thread NQU | Saddle Protrusion from Plgr (mm) |
| RSC-0550 | 5 | 50 | 7.1 | 0.035 | 133 | 183 | 40 | 30 | 25 | 1/4 | 13 |
| RSC-05100 | 5 | 100 | 7.1 | 0.071 | 183 | 283 | 40 | 30 | 25 | 1/4 | 13 |
| RSC-05150 | 5 | 150 | 7.1 | 0.106 | 233 | 383 | 40 | 30 | 25 | 1/4 | 13 |
| RSC-1050 | 10 | 50 | 15.2 | 0.076 | 141 | 191 | 62 | 44 | 38 | 3/8 | 21 |
| RSC-10100 | 10 | 100 | 15.2 | 0.152 | 191 | 291 | 62 | 44 | 38 | 3/8 | 21 |
| RSC-10150 | 10 | 150 | 15.2 | 0.228 | 241 | 391 | 62 | 44 | 38 | 3/8 | 21 |
| RSC-2050 | 20 | 50 | 33.2 | 0.166 | 157 | 207 | 88 | 65 | 55 | 3/8 | 22 |
| RSC-20100 | 20 | 100 | 33.2 | 0.332 | 207 | 307 | 88 | 65 | 55 | 3/8 | 22 |
| RSC-20150 | 20 | 150 | 33.2 | 0.497 | 254 | 404 | 88 | 65 | 55 | 3/8 | 22 |
| RSC-3050 | 30 | 50 | 44.2 | 0.221 | 157 | 207 | 107 | 75 | 65 | 3/8 | 22 |
| RSC-30100 | 30 | 100 | 44.2 | 0.442 | 209 | 309 | 107 | 75 | 65 | 3/8 | 22 |
| RSC-30150 | 30 | 150 | 44.2 | 0.662 | 256 | 406 | 107 | 75 | 65 | 3/8 | 22 |
| RSC-30200 | 30 | 200 | 44.2 | 0.883 | 308 | 508 | 107 | 75 | 65 | 3/8 | 22 |
| RSC-5050 | 50 | 50 | 70.8 | 0.354 | 162 | 212 | 128 | 95 | 85 | 3/8 | 26 |
| RSC-50100 | 50 | 100 | 70.8 | 0.708 | 212 | 312 | 128 | 95 | 85 | 3/8 | 26 |
| RSC-50150 | 50 | 150 | 70.8 | 1.063 | 262 | 412 | 128 | 95 | 85 | 3/8 | 26 |
| RSC-50200 | 50 | 200 | 70.8 | 1.417 | 312 | 512 | 128 | 95 | 85 | 3/8 | 26 |
| RSC-10050 | 100 | 50 | 132.7 | 0.663 | 162 | 212 | 175 | 130 | 110 | 3/8 | 27 |
| RSC-100100 | 100 | 100 | 132.7 | 1.327 | 212 | 312 | 175 | 130 | 110 | 3/8 | 27 |
| RSC-100150 | 100 | 150 | 132.7 | 1.990 | 262 | 412 | 175 | 130 | 110 | 3/8 | 27 |
| RSC-100200 | 100 | 200 | 132.7 | 2.653 | 312 | 512 | 175 | 130 | 110 | 3/8 | 27 |
| RSC-15050 | 150 | 50 | 201.0 | 1.005 | 166 | 216 | 207 | 160 | 140 | 3/8 | 26 |
| RSC-150100 | 150 | 100 | 201.0 | 2.010 | 216 | 316 | 207 | 160 | 140 | 3/8 | 26 |
| RSC-150150 | 150 | 150 | 201.0 | 3.014 | 266 | 416 | 207 | 160 | 140 | 3/8 | 26 |
| RSC-150200 | 150 | 200 | 201.0 | 4.019 | 316 | 516 | 207 | 160 | 140 | 3/8 | 26 |
| RSC-20050 | 200 | 50 | 280.4 | 1.402 | 171 | 221 | 237 | 189 | 169 | 3/8 | 31 |
| RSC-200100 | 200 | 100 | 280.4 | 2.804 | 221 | 321 | 237 | 189 | 169 | 3/8 | 31 |
| RSC-200150 | 200 | 150 | 280.4 | 4.206 | 271 | 421 | 237 | 189 | 169 | 3/8 | 31 |
| RSC-200200 | 200 | 200 | 280.4 | 5.608 | 321 | 521 | 237 | 189 | 169 | 3/8 | 31 |
| RSC-300100 | 300 | 100 | 415.3 | 4.153 | 233 | 333 | 287 | 230 | 210 | 3/8 | 31 |
