ROUND KNOCKOUT PUNCHES
Type E
the new SPEED PUNCH System
SAVE TIME AND SAVE MONEY WITH EVERY PUNCH

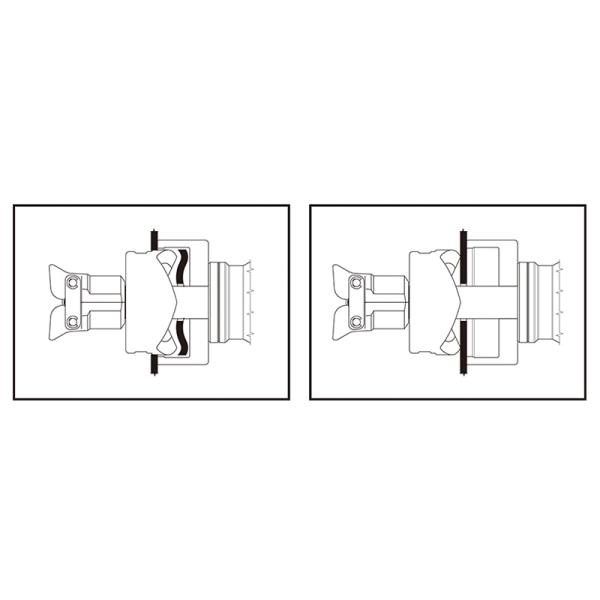

SPEED LOCK mechanism quickly secure the entire system in place, punch more holes in less time.
"No-thread" punch design quickly and easily slides on/off draw stud
The punch and die are precisely matched with the draw stud
3X quicker punching with the Speed Punch System
After opening, the surface of the hole is smooth and clean, without obvious burr
PATENT NO：CN209773209U
| CONDUIT&PIPE SIZE | HOLE SIZE (ACTUAL) | CAPACITY | DRAW STUD WITH BEAING | |||
| Φ(INCH) | Φmm | mm | GA | |||
| 1/2" | 7-8 | 0.885 | 22.5 | 3.5 | 10 | 3/8", 24UN |
| 3/4" | - | 1.115 | 28.3 | 3.5 | 10 | 3/4", 16UN |
| 1" | - | 1.362 | 34.6 | 3.5 | 10 | 3/4", 16UN |
| 1-1/4" | - | 1.701 | 43.2 | 3.5 | 10 | 3/4", 16UN |
| 1-1/2" | 1-15/16 | 1.951 | 49.6 | 3.5 | 10 | 3/4", 16UN |
| 2" | 2-3/8 | 2.416 | 61.5 | 3.5 | 10 | 3/4", 16UN |
| 2-1/2" | 2-7/8 | 2.914 | 74.0 | 3.5 | 10 | 3/4", 16UN |
| 3" | 3-1/2 | 3.539 | 89.9 | 3.5 | 10 | 3/4", 16UN |
| 3-1/2" | 4 | 4.044 | 102.7 | 3.5 | 10 | 3/4", 16UN |
| 4" | 4-1/2 | 4.544 | 115.4 | 3.5 | 10 | 3/4", 16UN |
| 5" | 5-5/8 | 5.675 | 144.1 | 3.5 | 10 | 3/4", 16UN |
| 6" | 6-3/8 | 6.375 | 161.9 | 3.5 | 10 | 3/4", 16UN |
