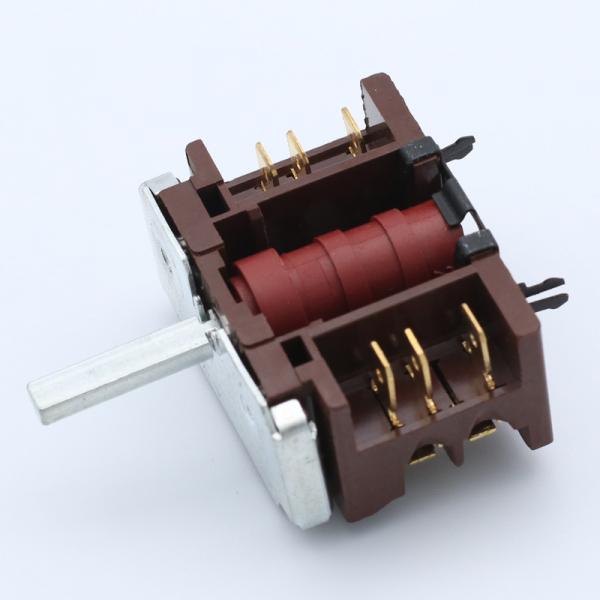

Rotary switches adjust the gear used in electric oven/water heaters
XZ307-122
This rotary switch, also known as gear switch

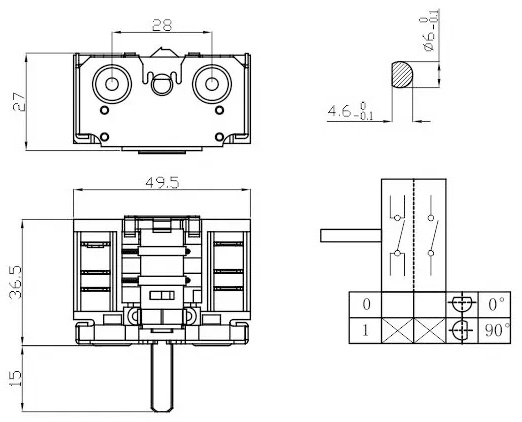

Product Drawings
Working Principle
Simultaneously control multiple circuits, through the rotation of the switch to shift gears to achieve the desired function, or constantly increase or decrease power. Generally used in ovens, kitchen equipment, electric stoves, and other electrical equipment that requires constant power adjustment. The switch can withstand a maximum current of 16A per group, the voltage is 250V, the switch from a section to 12 sections, there can be a variety of wiring, flexible use, and can be customised according to customer needs.
Application Areas
With the role of adjusting the gear for electric ovens, heaters, warmers, water heaters, barbecue grills, electric cookers, household appliances, machinery and equipment
Services
- Sample test: Because of the specialness of bimetal thermostats, we need to conduct matching installation test before an order is placed. Through such test, we can also make sure that the performance of our products, temperature and other parameters are qualified in line with customers’ requirements.
- Special requirements: We can design molds according to customers’ drawings. If customers do not have drawings, but have samples, they need to send the samples to our engineers. We can measure the size and design the drawing, and then design the mold based on the drawing.
- After-sales service: If the temperature of the product needs to be changed, please feel free to contact us and we will always be patient in serving you. Instead of engaging in one-off business, we are seeking long-term cooperation, from which we can achieve a win-win situation.
- Payment: Currently we support T/T payment, and demand an advance deposit which is 30% to 50% of the total amount. The rest shall be paid off before delivery. As for other payment methods, it can be determined according to the sum of the order and the actual situation.
Product Parameters
| Product Certificates | CE,TUV |
| electrical contact resistance | ≤50mΩ |
| electrical insulation resistance | ≥100mΩ/DC500V |
| working temperature | -25-150℃ |
| electrical strength | 1800 VAC/minute |
Packing:
inner packing:
outer packing:
