RF/Microwave Drop in Circulator 20MHz to 20GHz Up to 2000W Power TAB Connector - UIYDCxxxxA
RF/Microwave Drop in Circulator 20MHz to 20GHz Up to 2000W Power TAB Connector For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale RF/Microwave Drop in Circulator 20MHz to 20GHz Up to 2000W Power TAB Connector, Made in China, High Quality Products!, China RF Circulator, Microwave Circulator, Drop in Circulator, RF/Microwave communication, Telecommunication, Ferrite Circulator, Satellite communication Supplier, Manufacturer.
Features :
◆ Frequency range from 20MHz to 20GHz, up to 2000W power.
◆ Military, space and commercial applications.
◆ Low insertion loss, High isolation, High power handling.
◆ Custom design available upon request.
Specification :
Low Frequency from 20MHz to 1875MHz(such as 20~50MHz, 49~86MHz, 60~200MHz, 130~180MHz, 180~300MHz, 225~400MHz, 250~1000MHz,300~1000MHz, 300~1875MHz) for FM,VHF,UHF,etc
*Model No.: UIYDC8080A
Freq.Range(MHz): 20~50
BandWidth(Max.): 10%
Insertion Loss(dB): 1.5
Isolation(dB): 17
VSWR: 1.35
Forward Power(W): 50
Reverse Power(W): 50
Connector Type : TAB
Temp.(℃): +10~+60
Dimension LxWxH(mm): 80x80x28
*Model No.: UIYDC3538A
Freq.Range(MHz): 300~1875
BandWidth(Max.): 40%
Insertion Loss(dB): 0.3
Isolation(dB): 30
VSWR: 1.15
Forward Power(W): 300
Reverse Power(W): 300
Connector Type :TAB
Temp.(℃): -40~+85
Dimension LxWxH(mm): 35x38x11
Hign Frequency from 410MHz to 20GHz(such as 0.41~3.5GHz, 0.7~3.1GHz, 0.8~3.0GHz, 1.45~3.8GHz, 3.5~5.1GHz, 5.0~7.0GHz, 5.8~20.0GHz) for GSM,CDMA,WCDMA,LTE,L.S.C.X band,etc
*Model No.: UIYDC2525A
Freq.Range(GHz): 0.41~3.5
BandWidth(Max.): 20%
Insertion Loss(dB): 0.3
Isolation(dB): 23
VSWR: 1.15
Forward Power(W): 200
Reverse Power(W): 200
Connector Type :TAB
Temp.(℃): -40~+85
Dimension LxWxH(mm): 25.4x25.4x10.5
*Model No.: UIYDC815A
Freq.Range(GHz): 5.8~20.0
BandWidth(Max.): 25%
Insertion Loss(dB): 0.3
Isolation(dB): 23
VSWR: 1.2
Forward Power(W): 30
Reverse Power(W): 30
Connector Type : TAB
Temp.(℃): -40~+85
Dimension LxWxH(mm): 8.9x15x7.8
For more informations, please visit the following website:
www.uiy.com
UIY TECHNOLOGY CO., LTD
Address: B29H, Binfenshiji, Longxiang Blvd, Longgang District, China, Shenzhen, China, 518172
Tel: +86-755-25999909
UIY Technology Co., Ltd. is a leading supplier of the RF/microwave communication components. The main products are isolators, circulators, power splitters, couplers, filters and other microwave devices related products.With evolution, UIY has become a one of the modern high-tech enterprises of R&D, production, sales and service.
The company " Survive on Quality, by scientific and technological education new product, Develop by Credit " business purposes. Products are widely used in satellite radar, aerospace technology, instrumentation equipment, mobile communications and microwave communications with military and civilian markets.
The company has an experienced and innovative R & D team. From R & D to production, testing, inspection, sales and service the entire system is controlled in a good state, product and service quality is guaranteed.
With a rich of R & D capability and production technology, excellent product quality, strong technical support capabilities and a higher price in the market share continues to increase, so we in the industry gained a high reputation, become as more and more the company a trusted partner.
The company at continued to improve at the same time, while making full use of talent, innovation advantage, service quality and price advantages in all areas in the world, Look forward with and Personnel in various fields From collaboration Absorb nutrients, be inspired, to explore a Survive, developing the road.
Email:608@uiy.com
Related Products
Low Noise Amplifier 0.1MHz to 20GHz SMA/N Connector
UIYLNA7825A/B/C

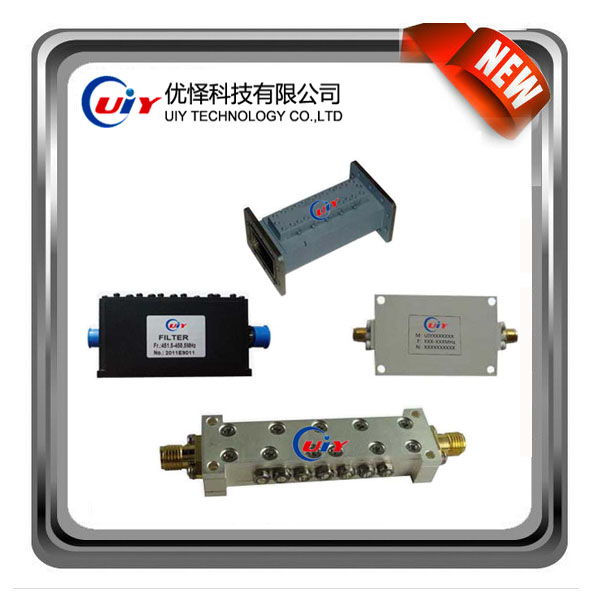

Hign Pass Filter Up to 20GHz BNC/SMA Connector
