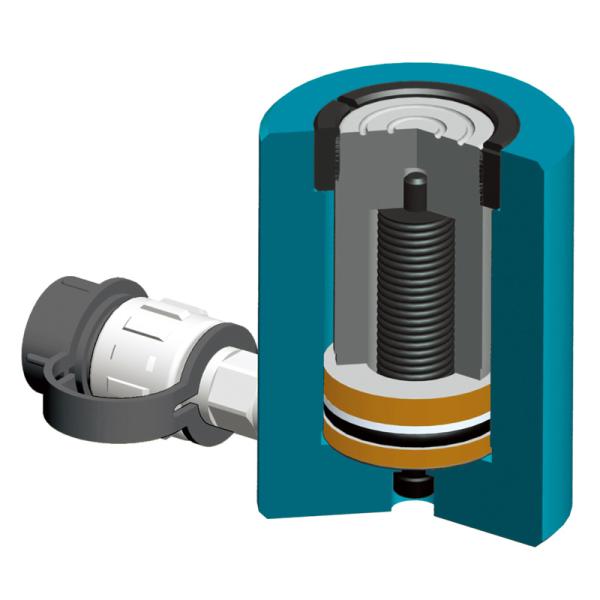

RC-SINGLE ACTING HYDRAULIC STEEL CYLINDER
RC series

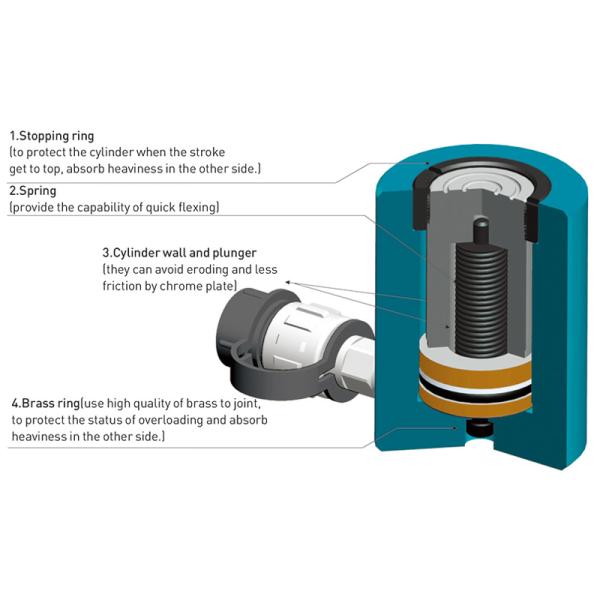

● It has the characteristic of low collapsed height, if the requirement of stroke needs to be higher than RMC series,RC series is suit for this case.
● The surface of principle axis is finished with chrome plate to protect the using of longeity of the product.
● Plunger has the function of retracting automatically
● WRC rotary head, can work in bevel.
| Item/no | Output (t) | Stroke (mm) | Effactive area (cm²) | Oil capacity (l) | Height of Product (mm) | Extended Height (mm) | Outside dia (mm) | Bore dia (mm) | Principal axis Dia(mm) | Oil supply hole Thread NQU | Saddle Protrusion from Plgr (mm) |
| RC-0550 | 5 | 50 | 7.1 | 0.036 | 121 | 171 | 40 | 30 | 25 | 1/4 | 1 |
| RC-1050 | 10 | 50 | 15.2 | 0.075 | 105 | 155 | 73 | 44 | 38 | 3/8 | 2 |
| RC-2050 | 20 | 50 | 33.2 | 165.9 | 103 | 153 | 93 | 65 | 55 | 3/8 | 2 |
| RC-3050 | 30 | 50 | 44.2 | 0.221 | 103 | 153 | 107 | 75 | 65 | 3/8 | 2 |
| RC-5050 | 50 | 50 | 70.8 | 0.355 | 108 | 159 | 128 | 95 | 85 | 3/8 | 2 |
| RC-10050 | 100 | 50 | 132.7 | 0.664 | 135 | 185 | 175 | 130 | 110 | 3/8 | 2 |
| RC-15050 | 150 | 50 | 201.0 | 1.005 | 137 | 187 | 207 | 160 | 140 | 3/8 | 2 |
| RC-20050 | 200 | 50 | 280.4 | 1.402 | 137 | 187 | 238 | 189 | 169 | 3/8 | 2 |
| RC-30050 | 300 | 50 | 415.3 | 2.077 | 152 | 202 | 287 | 230 | 210 | 3/8 | 3 |
| WRC-10050 | 100 | 50 | 132.7 | 0.664 | 148.5 | 198.5 | 175 | 130 | 110 | 3/8 | 13.5 |
