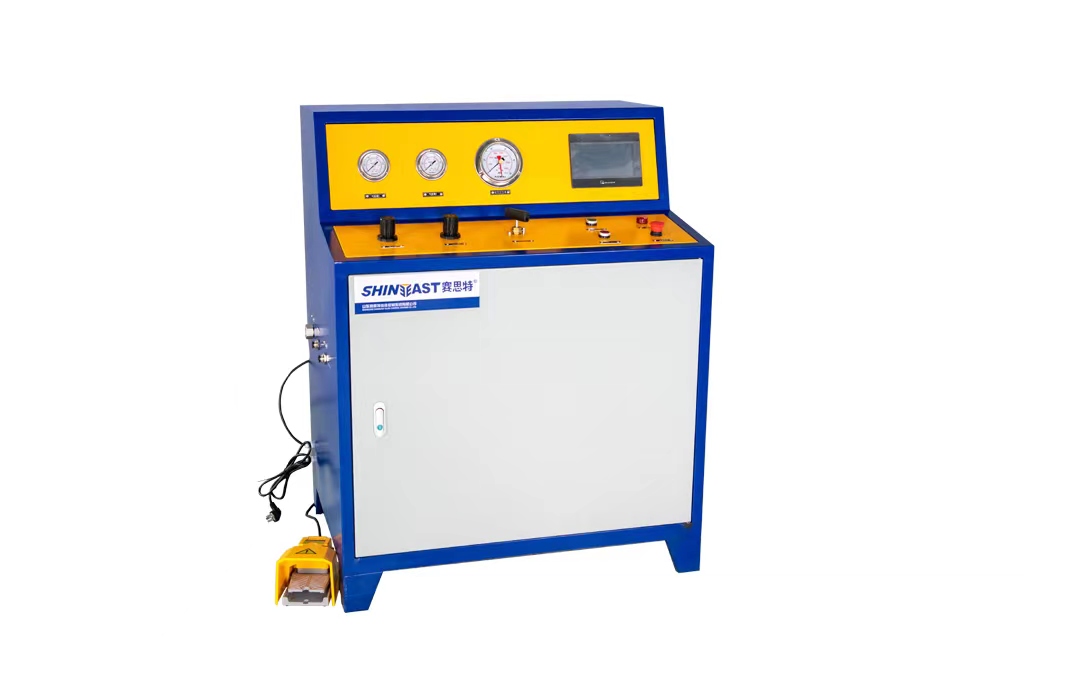

Radiator Tube Expansion Machine
Shineeast tube expansion machine adopts Shineeast air driven liquid pump to pressurize the radiating tube, making the diameter of radiating tube become larger(generally 0.3-0.4mm larger than originally), which lead to the interference fit between the radiating tube and cooling fin, so that make them close integration, instead of the traditional welding technology.
Technical parameters：
① Expansion pressure： 0-60M Pa （adjustable）
② Working medium：clean water
③ Electricity power：220 V
④ Drive air pressure：3-8 bar
⑤ Water supply source：city water
⑥ Control mode：PLC control
⑦ Pressure control accuracy：+-1%
⑧ No. of station：single station
⑨ Expansion speed: 5-10 times/min
⑩ Min. expansion hole diameter: ＞10 mm
Product features:
• Pressure-holding value can be set, ensure expansion quality
• Time of pressure-holding can be set, ensure expansion quality
• Pressuring and pressure-releasing is quite quickly, improving expansion speed greatly
