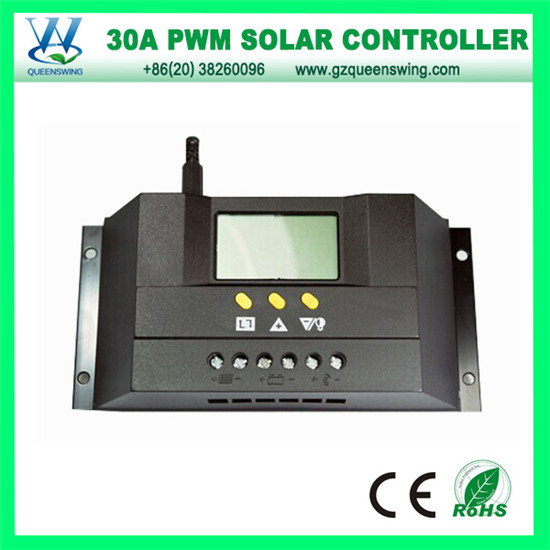

QueensWing 30A PWM Solar Charge Controller With digital display(QWP-1430RSL) - QWP-1430RSL
QueensWing 30A PWM Solar Charge Controller With digital display(QWP-1430RSL) For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale QueensWing 30A PWM Solar Charge Controller With digital display(QWP-1430RSL), Made in China, High Quality Products!, China controller, solar controller Supplier, Manufacturer.
Specification:
Model No.
QW P-1430RSL
Rated charge current
30A
Rated charge voltage
12V/24V
Maximum voltage of solar panel
≤ 50V
Float voltage
13.7V/27.4V
Low voltage disconnection
10.7V/21.4V
Low voltage recollection
12.6V/25.2V
No load loss
<30mA
Loop voltage
< 170mV
Charging mode
PWM mode
Installation cable area
> 7 AWG (< 16 mm2)
Temperature compensation
-4mV/Cell/degree
Operating temperature
-20~ 60oC
Storage temperature
-30~ 70oC
Humidity requirement
≤ 90%,no condensation
Mounting hole spacing
60mm*178mm-Φ5
Specification:
Model No.
QW P-1430RSL
Rated charge current
30A
Rated charge voltage
12V/24V
Maximum voltage of solar panel
≤ 50V
Float voltage
13.7V/27.4V
Low voltage disconnection
10.7V/21.4V
Low voltage recollection
12.6V/25.2V
No load loss
<30mA
Loop voltage
< 170mV
Charging mode
PWM mode
Installation cable area
> 7 AWG (< 16 mm2)
Temperature compensation
-4mV/Cell/degree
Operating temperature
-20~ 60oC
Storage temperature
-30~ 70oC
Humidity requirement
≤ 90%,no condensation
Mounting hole spacing
60mm*178mm-Φ5
