SHINEEAST

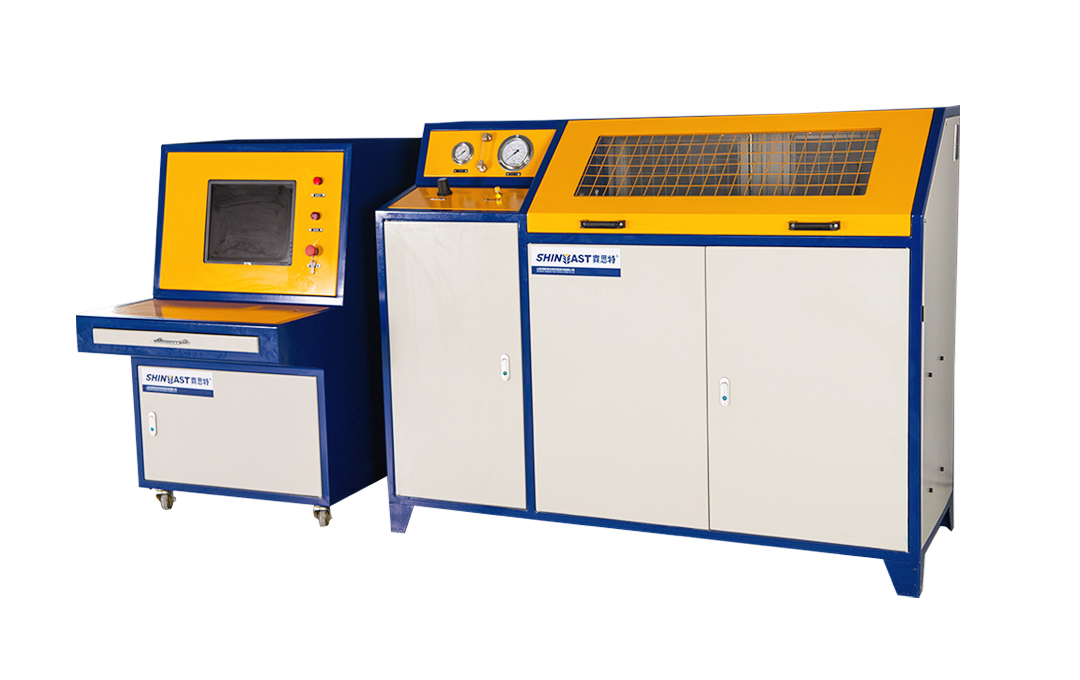

Pressure and Burst Testing Machine for Fire Hoses is used for the comprehensive testing including hydraulic testing, burst testing, expansion rate and seepage volume for fire hoses. Stable pressure output, advanced hose clamp design, and accurate computer control system greatly improve the detection efficiency and accuracy.

Reference standards:

GB6246 Performance Requirements and Test Methods for Lined Fire Hose

Technical parameter:

Output pressure: 0-16MPa

Test medium: water

Medium temperature: normal temperature

Control mode: automatic

Clamping mode: (manual or electric optional)

Test specification: DN50, DN65, DN80, etc.

Pressure measurement accuracy: 0.5% F.S

Pressure control accuracy: 2% F.S

Pressurizing rate: 5~10MPa/min (adjustable)

Length accuracy: 1mm

Angle accuracy: 0.5 °

Power requirement: AC 220V 50Hz;
