Pneumatic Pressure Booster for High Pressure Testing
STD Series

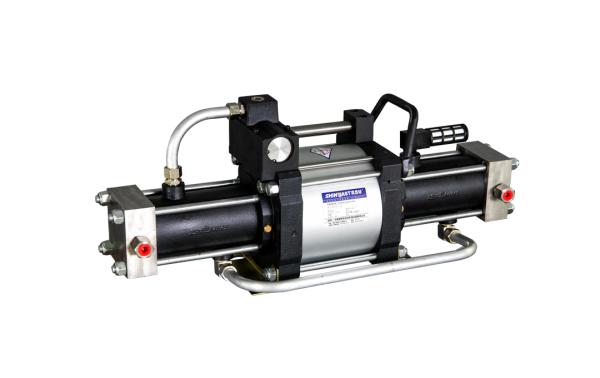

SHINEEAST High Pressure Boosters provide for pressures up to 1400bar. Used for oil free compression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygen and natural gas. These boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.

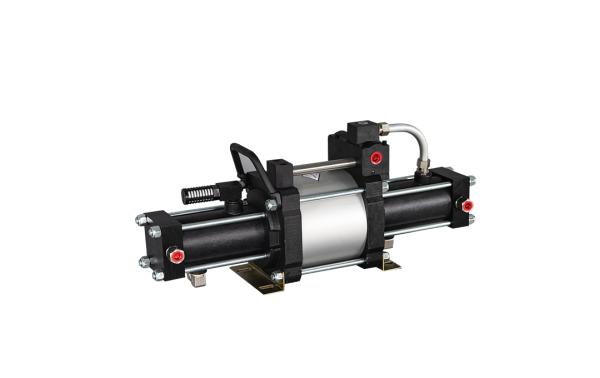

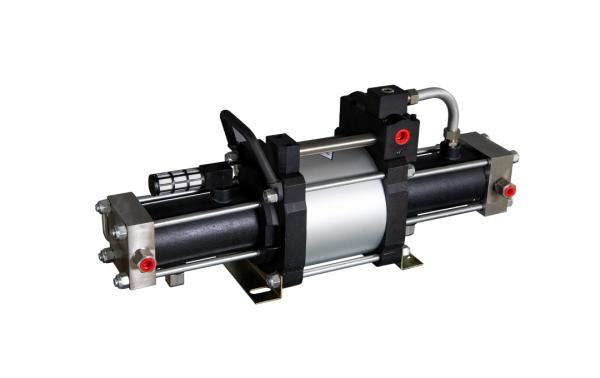

STD pumps are double acting, single stage with double air driven heads type. They are characterized by the same features as the STA series, and should be prepressurized at inlet port so as to obtain required outlet pressure, which will be variable for different requirement.
Technical Parameters of STD Series Gas Boosters:
Type | Pressure ratio | Min. gas inlet pressure PA (bar) | Max. gas inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at air drive pressure of 6bar (L/min) |
STD04 | 4：1 | 2 | 32 | 32 | 4XPL+ PA | 1/2/1/2 | 380 (at PA of 6 bar) |
STD06 | 6:1 | 4 | 48 | 48 | 6XPL+ PA | 3/8/3/8 | 360 ( at PA of 6 bar) |
STD10 | 10:1 | 5 | 80 | 80 | 10XPL+ PA | 1/4/1/4 | 372(at PA of 6 bar ) |
STD25 | 25:1 | 10 | 200 | 200 | 25XPL+ PA | 1/4/1/4 | 154(at PA of 20 bar ) |
STD40 | 40:1 | 15 | 320 | 320 | 40XPL+ PA | 1/4/1/4 | 92(at PA of 20 bar ) |
STD60 | 60:1 | 25 | 480 | 480 | 60XPL+ PA | 1/4/1/4 | 115(at PA of 40 bar ) |
STD100 | 100:1 | 35 | 800 | 800 | 100XPL+ PA | 1/4/M14X1.5 | 74(at PA of 40 bar ) |
Note: PL: air drive pressure PA: gas inlet pressure PB: gas outlet pressure
Related Products
High Pressure Gas Compressors
with Large Flow
High Pressure Relief Valve
6000psi

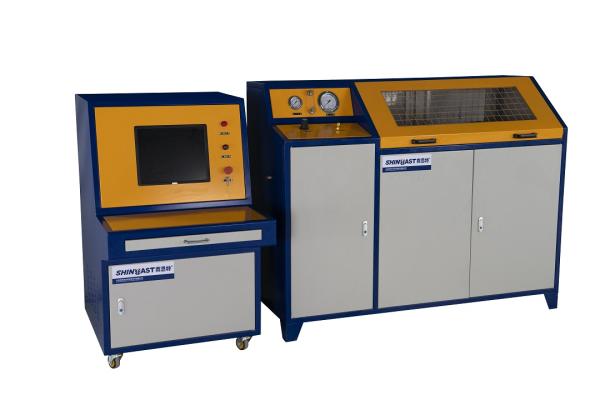

Burst Pressure Test Machine
