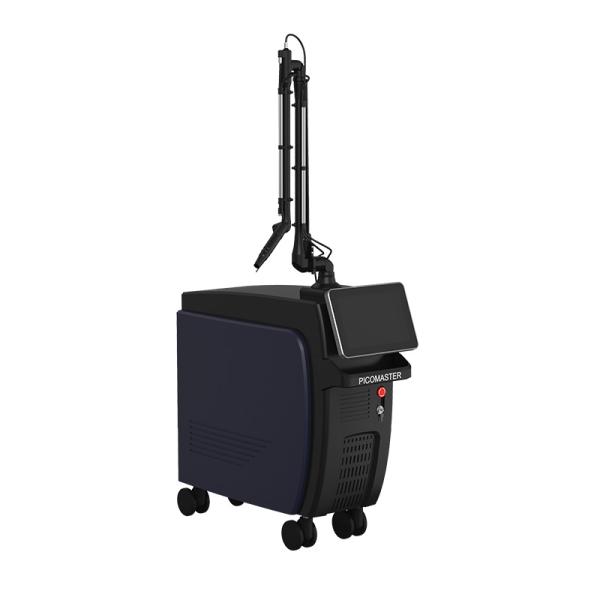

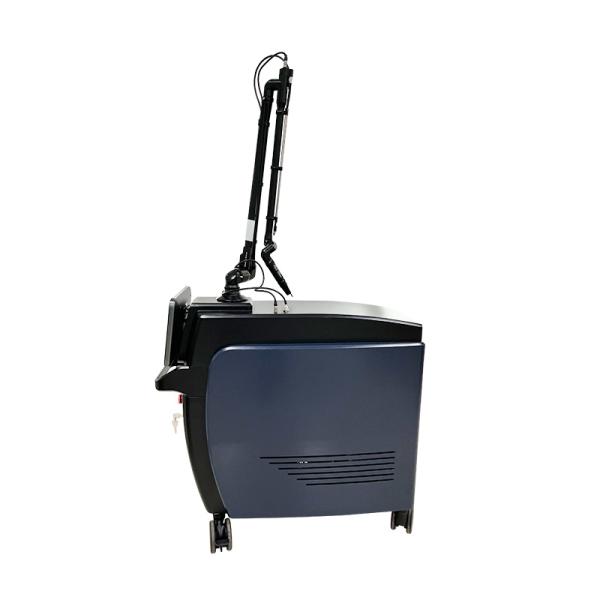

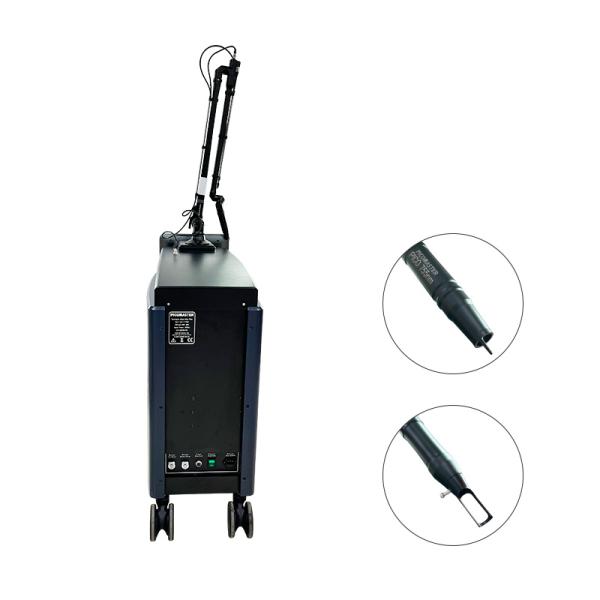

PICOMASTER picolaser Skin Therapy System
PL-268
Pico Laser + Long Pulse 2 in 1 machine for skin repairing. The picosecond laser with ultra-short pulse width can effectively produce photo-mechanical effects and break the pigment particles into small fragments.Compared with nano-scale Q-switched laser, picosecond laser only needs lower energy to achieve the effect.
PICOMASTER picolaser Skin Therapy System
1. Theory
Using the light blasting effect, the high-intensity laser penetrate the epidermis and can reach the pigment clusters in the dermis layer. Because the energy has a short time of action and the energy is extremely high, the pigment clusters will quickly expand and explode after absorbing the high energy in an instant. After the particles are swallowed by macrophages, excreted, and the pigment gradually fades and disappears.
The picosecond laser with ultra-short pulse width can effectively produce photo-mechanical effects and break the pigment particles into small fragments.
Compared with nano-scale Q-switched laser, picosecond laser only needs lower energy to achieve the effect.
It takes less number of treatment courses to achieve better treatment effect.
Stubborn green and blue tattoos can also be effectively removed.
Treated but incomplete tattoo removal, picosecond laser can also treat.
In the mechanism of pigment particle destruction, there are mainly photothermal and photomechanical effects. The shorter the pulse width, the weaker the effect of converting light into heat. Instead, the photomechanical effect is used, so picoseconds can effectively crush the pigment particles, resulting in better pigment removal.
Parameters
Input Power | 2000W | |
Screen | 12inch touch screen | |
Cooling System | semiconductor, water cooling | |
Voltage | 110V/220V | |
Pico Laser | Wavelength | 1064nm, 755nm, 532nm |
Frequency | 1-10Hz | |
Power | 200-2000mj | |
Long Pulse | Wavelength | 1064nm, 532nm |
Frequency | 0.5Hz -2Hz | |
Power | 200mj -2000mj | |
Spot Size | 2-10mm(adjustable) | |
N. W./G. W. | 64kg/ 92kg | |
Package Size | 108cm*44cm*102cm | |
2. Application
(1) Pico Laser
Remove chloasma, freckles, age spots, brown mole spots, acne marks and other endogenous pigments, wash eyebrows, tattoos, moles, birthmarks, remove Ota moles, etc.
(2) Long Pulse
① Dispersion: the specific wavelength of laser light acts on the deep tissues of the skin, in the case of the skin is not harmed, the pigment particles are subsided and discharged out of the body along with the body's metabolism, so as to achieve the purpose of dispelling the spots.
② Anti-aging: Using long pulse light energy, it acts directly on the dermis layer of the skin and promotes collagen regeneration of the skin, thus playing the role of anti-aging.
③ Improve skin texture: Promote the metabolism of the skin, accelerate the shedding of old keratin, but also promote the skin's melanin discharged from the body, helping the skin smoother and more delicate.
④ Improve pore size: Destroy the tissue around the hair follicle, reduce oil secretion, thus playing a role in shrinking pores, help to improve oily skin and large pores.
⑤ Fade scars: penetrate to the deep tissue, stimulate collagen reorganization, help smooth the surface of scars, for fading acne scars, surgical scars, etc. have certain improvements
⑥ Get rid of red blood: through a specific wavelength of laser action on the surface layer of the skin, destroy abnormal capillaries, promote their contraction and smoothing. 1064 laser wavelength is selectively absorbed by the hemoglobin in red blood, resulting in its rupture and reduce the number. The technology is highly targeted and causes little damage to the surrounding healthy tissue.
