Pesticide / Soy Sauce Automatic Liquid Packing Machine 20-120 Bags/min - AIA-1

Pesticide / Soy Sauce Automatic Liquid Packing Machine 20-120 Bags/min For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale Pesticide / Soy Sauce Automatic Liquid Packing Machine 20-120 Bags/min, Made in China, High Quality Products!, China cheap prodocuts, china suppliers Supplier, Manufacturer.
Pesticide / Soy Sauce Automatic Liquid Packing Machine 20-120 Bags/min

?

Pesticide / Soy Sauce Automatic Liquid Packing Machine 20-120 Bags/min

?

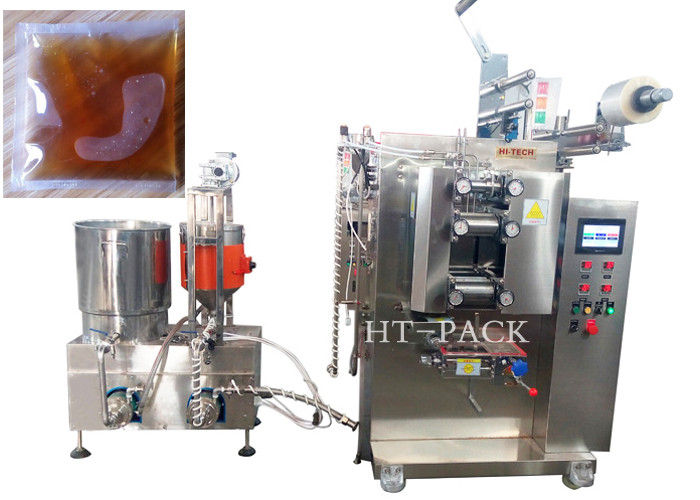

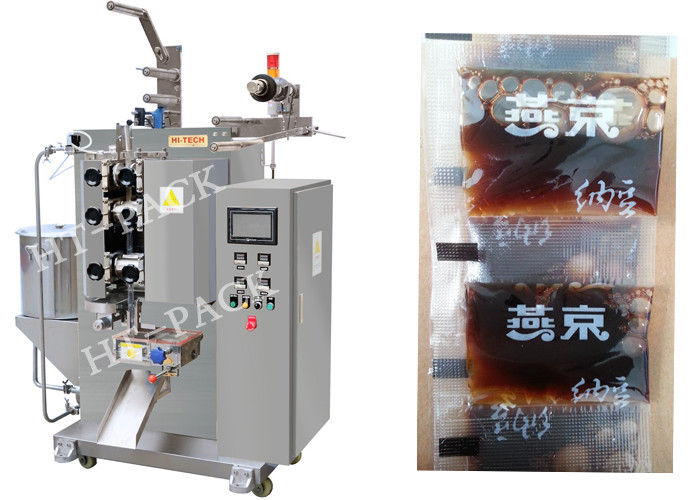

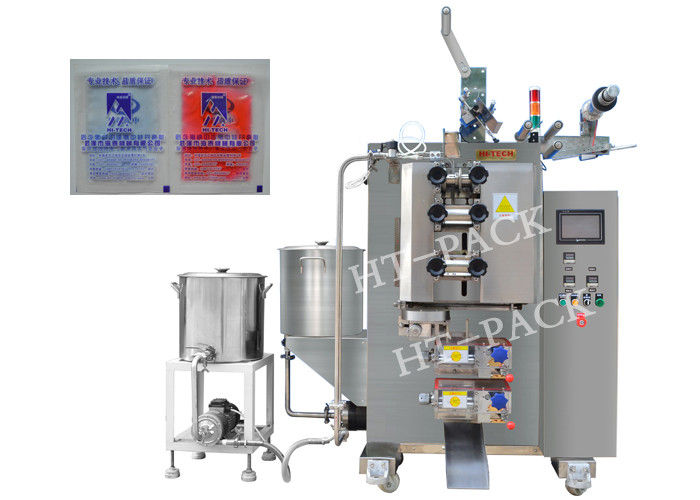

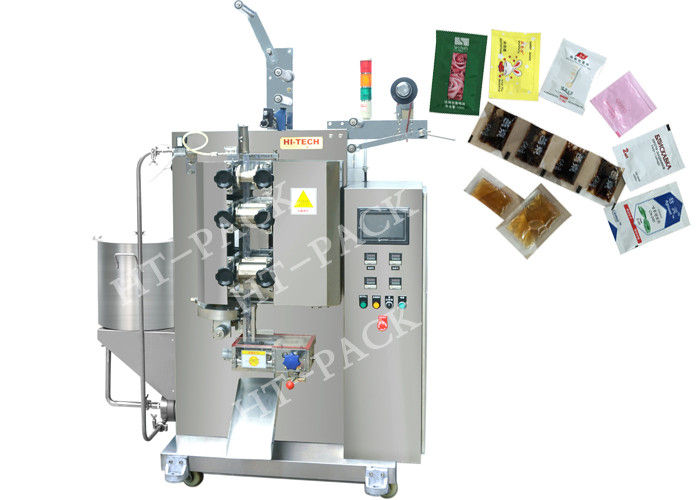

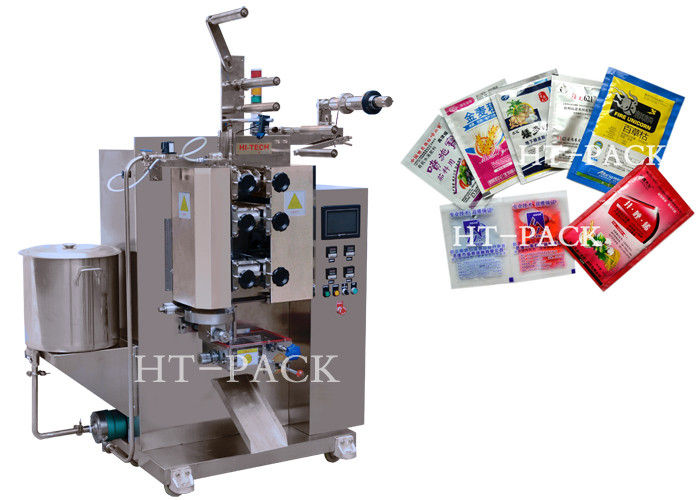

This machine is a triple roller type vertical packing machine that designed to achieve automatic packaging for liquid materials, can choose 3 or 4 sides seal type.All machines of this series have cursor automatically lock function to ensure that when the cursor signal is abnormal, the machine still can running right for a while. And the special film tensioning device can achieve ignoring the changes of tensile force during machine running. Seal method adopts roller seal type, the seal place is chessboard pattern with leakage-proof seal, has a good leakage-proof function and looks good. Cutting methods are flat cutting, saw tooth cutting and dot dash line cutting.

?

?

Application range

?

Pesticide, soy sauce, oil ad etc. liquid materials.

?

?

Specifications:

?

- - - -
Bag?Size | Length:?50-210mm??????? | Width:?30-150mm??? |
Packing?Speed | 20-120?Bags/min |
Capacity?Range | 1-100ml |
Bag?Materials | PET/PE,PET/AV/PE,?NY/AL/PE,NY/PE,?etc |
Mechanical?Power | 3.8KW/AC?380V 50HZ |
Mechanical?Dimensions | L1400mm*W1000mm*H1800mm |
Sealing?Method | Three?or?four?edges?sealing |
Net?Weight | ?500Kg |
Optional?Device | Product?conveying?belt,?Automatic?feeding?system,? |
Liquid?level?display?device,?Mixing?system,? |
Third?section?electric?control?system,?Code?machine/Printing?machine,? |
Voltage?regulator,?Air?compressor,?Back?suction?device |
- - - -

?

?

Wuhan Hai Tai Wei Chuang Technology Co., Ltd.?located in the Daijiashan Science&Technology Park of Wuhan?city Since 2002. We have 13 years of production experience.Our company is one of the most professional?vertical?type?small bag packing machine?enterprises that integrate research and development,manufacturing of?single packing machine & packing line. We has been devoting to the develop of domestic and international markets. It has dozens of distributors and after service outlets spreading around China, providing good pre-sales and after-sales services for the customers.
