MINI BATTERY POWERED CRIMPING TOOL
BZ-240
The ZUPPER BZ mini series with small and a low weight can generate high power and performance, aviation aluminum alloy with lighter body, only 2.5KGS. It is suitable for working in tight space. The tool comes standard with two 18V, 2.0Ah Li-ion batteries and one charger, motor drives, micro-computer control system, nd two stage hdraulic system with fast feed and power control.
| Output force: | 50kN |
| Stroke: | 12mm |
| Crimping range: | Cu 240mm²/Al 185mm² |
| Cycle time: | 4-7s(depend on the dia of cable) |
| Voltage/capacity: | 18V/2.0Ah |
| Charging time: | 40min |
| Voltage/capacity: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Ambient temperature: | -10-40℃ |
| Size of tool: | 305x75x280mm |
| Crimping dies: | 10-16,25-35,50-70,95,120,150,185,240mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
Related Products
BATTERY POWERED HYDRAULIC PUMP
CP-180B

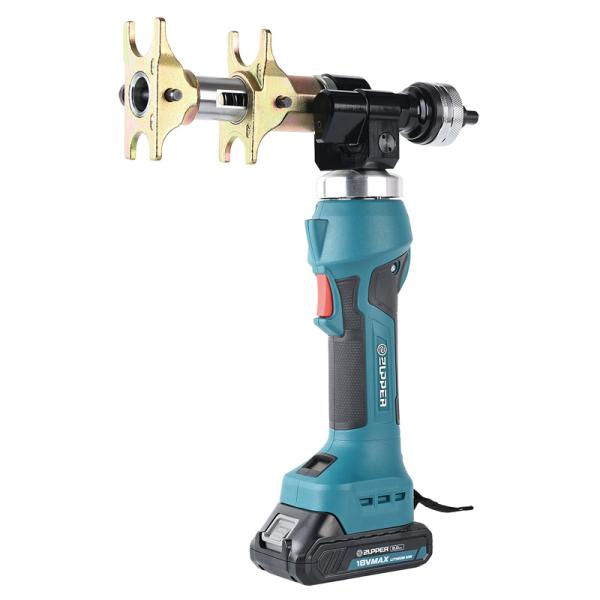

BATTERY POWERED AXIAL PRESS TOOL
