MANUAL HYDRAULIC MULTI-FUNCTIONAL TOOL
HZ-60UNV
● Flip top style closed working head. The head can rotate 350°
● Two stage hydraulic system

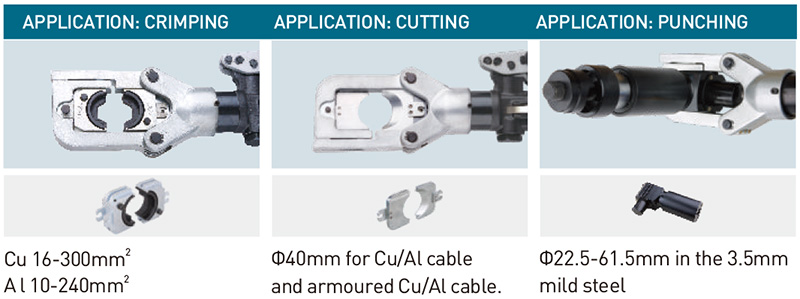

● One head for crimping, cutting and punching
● Safety system inside
| Working force: | 60kN |
| Stroke: | 42mm |
| Crimping range: | Cu 16-300mm² Al 10-240mm² |
| Cutting range: | Φ40mm for Cu/Al cable and armoured Cu/Al cable. |
| Punching range: | Φ22.5-61.5mm in the 3.5mm mild steel |
| ACCESSORIES: | |
| Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² | |
| Punches&die (Type D): 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm | |
| Blade: | 1set |
| Adapter for crimping: | 1pc |
| Adapter for punching: | 1pc |
| 3/4", 16UN Draw stud: | 1pc |
| 7/16", 20UN Draw stud: | 1pc |
| Spacer: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve: | 1set |
