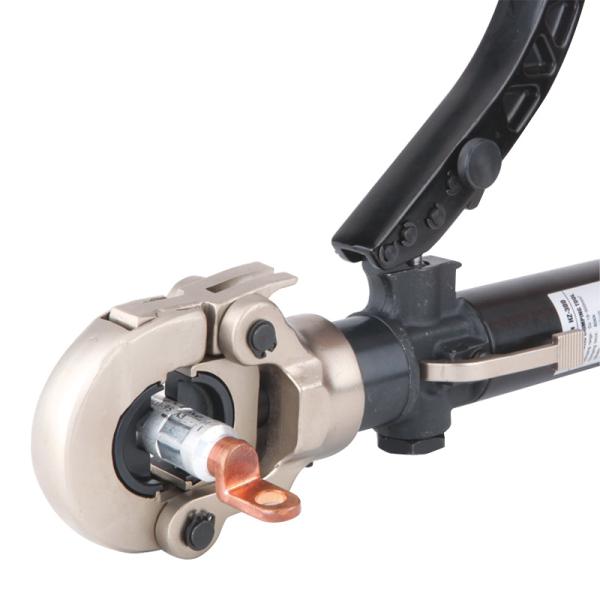

MANUAL HYDRAULIC CRIMPING TOOL
HZ-300
● The tool features a double speed action: a fast advancing speed for rapid approach to the connector and a slower speed with more powerful for crimping.
● The tool set with built-in safety valve, automatically pressure release and manual retract function, to ensure safe and reliable working.
● The head can rotate 350°
● The tool make of high tensive aluminum alloy with light body, compact and powerful
● With interchangeable Die
● Flip top style closed working head. The head can rotate 350°
● Two stage hydraulic system
● Safety system inside, automatic pressure release when crimp is completed.
Crimping range: | 16-300mm² |
Crimping force: | 60kN |
Stroke: | 17mm |
Crimping type: | Hexagon crimping |
ACCESSORIES: | |
Crimping die: | 16,25,35,50,70,95,120,150,185,240,300mm² |
