Solar Cells

【Product name】

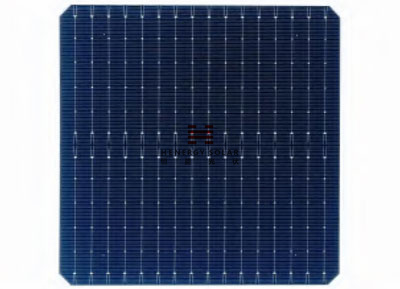

M10 182mm 16BB N type Topcon Solar Cells
【Product model】
HSSC182MTB16
【Product description】
Geometry Characteristics：
Product model:182 mono-crystalline Bifacial solar cell
Geometry：182.2mmx182.2mm±0.5mm, Φ 247.28mm±0.5mm
Cell thickness:130μm±13μm
Front design：16 busbars, 12 pads, 132 fingers, busbar width 0.036±0.02mm
Rear design：16 busbars, 12 pads, 134 fingers, busbar width 0.036±0.02mm



Product Characteristics：
High efficiency, Eta≥24.5%
Bifacial rate up to 80%
Light-induced Degradation is "0"
Superior anti-PID performance
Temperature coefficient of Power as low as -0.32%/K
Relative conversion efficiency≥97% under low light(200W/m2)
Lower Cell to Module (CTM) Loss Rate, more suitable for high- efficiency module



Quality Control：
The accuracy of the efficiency test is controlled within ±0.1%
Electrical performance, appearance, EL 100% automatic inspection
Calibration cells are traceable to Fraunhofer ISE



Temperature Coefficients：
TkCurrent： 0.045%/K‘
TkVoltage：−0.25%/K
TkPower：-0.32 %/K

【Product introduction】
Henergy Solar supply Solar Cell, Solar Panel, and other Solar products; and install Solar Power System, Solar Power Plant, and other solar projects.

Henergy Solar supplys Solar Cell, Solar Panel, Solar Power Station, Solar Power System, Solar Lamp, Solar Street Light, Solar Traffic Light, Solar Garden Light, Solar Charger, and other Solar product.
