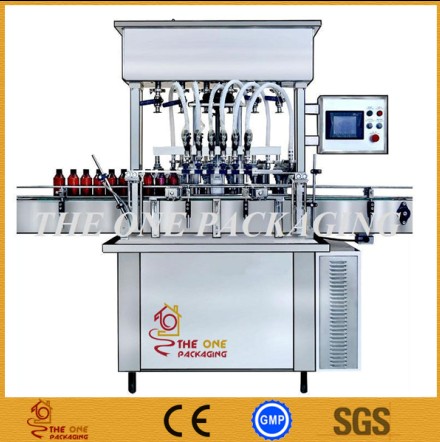

Liquid Filling Machine - TOALF1000-6

Liquid Filling Machine For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale Liquid Filling Machine, Made in China, High Quality Products!, China filling machine, liquid filling machine Supplier, Manufacturer.

TOALF1000-6 is designed on the basis of this company series products with extra functions increased. The product is simple and convenient in operation, error correction, machine cleaning and maintenance.
Widely used for filling various kinds of highly viscous fluid in the industries of daily chemicals, foodstuffs, pharmaceutics and oil.
With two synchronous filling heads, quick and accurate filling possible
With Taiwan AirTac,SHAKO pneumatic elements and Taiwan& acute;s electrical control parts adopted, its performance is stable.
The cylinders and pistons are made of SS304L stainless steel (You can choose 316L to instead of 304L), conforming to GMP.
Quality guaranteed by employing Korean AUTONICS photoelectric eyes, and frequency inverter, and Schneider Electric Co. electrical elements.
Compact design, attractive appearance, convenient installation and filling adjustment, no missed filling and accurate filling dosage with a counter provided.
Closure head preventing leakage and wire-drawing, filling elevating system preventing high froths, bottle top positioning system and liquid level control system provided.
Protect Cover with Touch Screen operation as optional.

Parameters:
Filling speed: 20-60 Bottle/min
Filling accuracy: <=±1%
Power supply: 220/110V 50/60Hz
Air pressure: 0.5-0.7MPa
Current: 3A
Power: 500W
Filing volumes: 5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml 1000-5000ml
Filling heads: 2,4,6,8(According to requirements)
