LF HOME INVERTER 1-3KW--SINE WAVE - LF INVERTER 1-3KW

LF HOME INVERTER 1-3KW--SINE WAVE For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale LF HOME INVERTER 1-3KW--SINE WAVE, Made in China, High Quality Products!, China cheap prodocuts, china suppliers Supplier, Manufacturer.
LF HOME INVERTER 1-3KW--SINE WAVE

1) 35a/70a through current
2)pure sine wave
3) Includes remote control
4)short transfer time(10ms)
5)very high stable


?





?

?

?

Introduction:

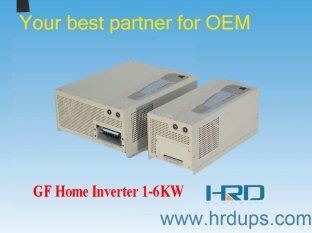

GF Home Inverter is specially designed for home appliance , such as light, fan, TV, Ice-box, air conditioner etc.

?

Main Features
1) Pure sine wave
2)Big charger (35/70A )
3) P.F.C. (power factor correction)
4) Includes remote control within 10 metre cable
5) Less than 10ms transfer time for computer use
6)very Stable to standwith all kinds of inductive,capacitive loads ect.

7)Perfect compatible with Generator

Technical Specification:

- - - -
Model | GF 1012 | GF1024 | GF2012 | GF2024 | GF3012 | GF3024 |
Capacity | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W |
Input |
Nominal Voltage | 220V/230V |
Voltage Range | 180-253VAC(+/-4%),Max input AC voltage 270V |
Frequency | 50/60Hz(auto sensing) |
Output |
AC voltage Regulation(Batt.Mode) | 220v/230v+/-10% |
Frequency((Batt.Mode) | 50/60Hz+/-1hz |
Transfer Time | 10ms(typical) |
Wave form | Pure sine wave |
Battery |
Battery voltage | 12V | 24V | 12V | 24V | 12V | 24V |
Floating Charge Voltage(DC) | 13.4V+/-2% | 26.8V+/-2% | 13.4V+/-2% | 26.8V+/-2% | 13.4V+/-2% | 26.8V+/-2% |
Battery Alarm Voltage | 10.5V | 21V | 10.5V | 21V | 10.5V | 21V |
Shutdown Voltage | 10.0V | 20.0V | 10.0V | 20.0V | 10.0V | 20.0V |
Over Charge Protection | 15.0V | 30.0V | 15.0V | 30.0V | 15.0V | 30.0V |
Max. Charge Current | 70A | 35A | 70A | 35A | 70A | 35A |
Protection |
Full Protection | Overload and Short Circuit and Over temperature |
Communication&Other | RJ11(USED for factory testing only) |
Safety Certification | Compliance with U1458/CE(EN60950) |
EMI Classification | FCC,CLASSA/EN50091-2,CLASSA |
Audible Noise | 60db ( 1M,Max) |
Alarm |
Low Battery | Beep 0.5s every 5s |
Overload | Beep 0.5s every 5s |
Over? temperature | Beep 0.5s every 5s |
Fault | Beep continuously |
Phisical |
Dimension(D*W*H) | 442*218*179MM |
Weight(Net/Gross)KG | 18/20 | 20/22 | 22/24 |
? | ? | ? | ? | ? | ? | ? | ? | ? | ? | ? | ? | ? |
- - - -

?
