led convert light hide a way light L168 - L168
led convert light hide a way light L168 For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale led convert light hide a way light L168, Made in China, High Quality Products!, China led convert light, hide a way light Supplier, Manufacturer.

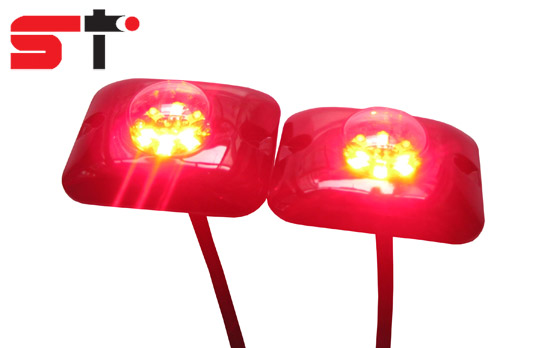

This series is a concealed LED warning light that features high intensity 1-watt LEDs to deliver an exceptionally bright warning signal.Simple installation with no separate lamp drivers, flashers, ballast or power supplies to install in any suface mount or inside of headlight.Requiring only a single 1” hole.The lights features 12-24 VDC operation, 20 flash patterns, the ability to synchronize with additional units.
Features and Technical Specifications:
Generation III high power LED, Hide-away light
High strength: Aluminum housing and cover
LED power: 8PCS of 1Watt LEDs
Pre-programmed multiple 20 flash patterns
Alternating or simultaneous flashing available
Waterproof: IP67
Wiring:
RED: + 12V DC (Fuse@ 3A)
BLACK: – GROUND Connect to Ground vehicle chassis
Yellow Pattern:
Selection To select Flash pattern, apply Yellow to Black, Less than 1 second for next pattern About 3-5 seconds for steady burn, more than 5 seconds to turn off
Blue: Synchronization
Connect Blue wire of all heads together for synchronization All heads must be on same flash pattern to be able to synchronization
Flash Patterns:
1. Steady on
2. Random
3. Single slow (T=280ms)
4. Single fast (T=150ms)
5. Double slow (T=85ms)
6. Double fast (T=60ms)
7. Triple (T=300ms)
8. Quad (T=400ms)
9. Extreme action flash (T=350ms)
10. Extreme warp flash (T=250ms)
11. Single slow (T=50ms)
12. Single fast (T=25ms)
13. Double slow
14. Double fast
15. Triple (T=50ms)
16. Quad (T=50ms)
17. Extreme action flash (T=250ms)
18. Extreme warp flash (T=100ms)
19. Half Steady 1
20. Half Steady 2
Suteer safety lights Co.,Ltd
Address: No.2 dadai street,ningbo,china, ningbo, zhejiang, China, 315100
Tel: 0086-0574-88167850
Suteer Safety Lights Co.Ltd was primarily involved in LED Warning Lights and emergency lights,for used for police car,fire fighting,ambulance/EMS,wrecker,project car,sprinkler,patrol car,emergency vehicle,offroad,jeep,truck,SUV ect,Including led lightbar,led mini lightbar,led lighthead,grille light,exterior light,visor light,dash light,deck light,windshield light,interior light,directional light,surface mount light,beacon,rotating light,led stroboscopic lamp,hide a way light,hideaway light,siren speaker,police car speaker,led bar driving light bar,offroad driving light,led working light,led tailgate light bar,led light kit,led traffic advisor,light stick.
Related Products

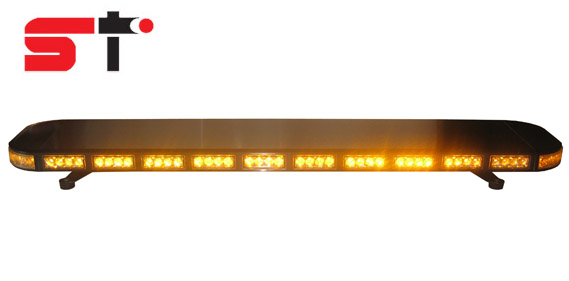

LED Lightbar for Police Car
