Large Flow High Pressure Liquid Pumps for Fatigue Pressure Testing

G Series

SHINEEAST G Series and GD Series High Pressure Pumps are large flow pumps, both of them are with diameter of drive plunger of 160mm.

G Series are single ating, single drive air head pumps, and GD Series are characterized by the same features as the G pumps single acting, single air drive head types, but they have less pulsations and deliver approx. 50 % more flow.

In addtion to G Series and GD Series pump, there are also G-2 Series pumps available, which are single acting, double drive air heads pumps, with diameter of drive plunger of 160mm.

Compared with the single acting single air drive head G pumps , G-2 Series pumps reach double pressure at the same air drive pressure.

Air Driven Liquid Pump-G Series

Technical Data

TYPE	Pressure Ratio	MAX Outlet Pressure(bar)*	Air drive	Connection Inlet A(NPT)	Connection Outlet B	MAX Flow (L/min)**
G4	4:1	32	PT1/2	NPT1/2	NPT1/2	32.10
G6	6:1	48	PT1/2	1/2	NPT1/2	29.91
G10	10:1	80	PT1/2	1/2	NPT1/2	18.84
G16	16:1	128	PT1/2	1/2	NPT1/2	12.05
G28	28:1	224	PT1/2	1/2	NPT3/8	6.78
G40	40:1	320	PT1/2	1/2	NPT3/8	4.71
G64	64:1	512	PT1/2	1/2	NPT3/8	3.01
G80	80:1	640	PT1/2	1/2	NPT3/8	2.44
G100	100:1	800	PT1/2	1/2	NPT3/8	1.92
G130	130:1	1040	PT1/2	1/2	NPT3/8	1.47
G175	175:1	1400	PT1/2	1/2	M14X1.5	1.08
G255	255:1	2040	PT1/2	1/4	M14X1.5	0.75
G400	400:1	3200	PT1/2	1/4	M14X1.5	0.48

*Max. outlet pressure at an air drive of 8 bar/116 PSI

**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI

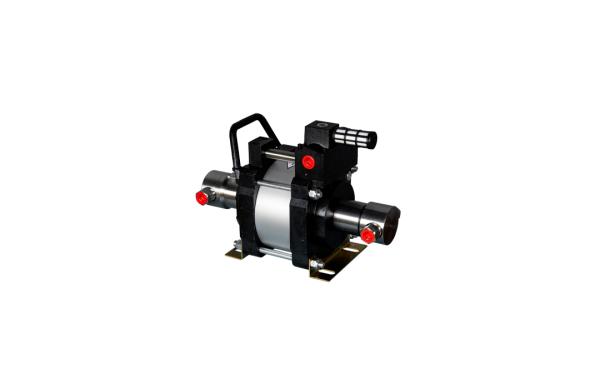

Air Driven Liquid Pump-GD Series

Technical Data

TYPE	Pressure Ratio	MAX Outlet Pressure(bar)*	Connection Inlet A	Connection Outlet B	Air drive	MAX Flow (L/min)**
GD4	4:1	32	NPT1/2	NPT1/2	G1/2	54.00
GD6	6:1	48	NPT1/2	NPT1/2	G1/2	48.60
GD10	10:1	80	NPT1/2	NPT1/2	G1/2	30.61
GD16	16:1	128	NPT1/2	NPT1/2	G1/2	19.73
GD28	28:1	224	NPT1/2	NPT1/2	G1/2	11.30
GD40	40:1	320	NPT1/2	NPT1/2	G1/2	7.69
GD64	64:1	512	NPT1/2	NPT3/8	G1/2	4.94
GD80	80:1	640	NPT1/2	NPT3/8	G1/2	3.96
GD100	100:1	800	NPT1/2	NPT3/8	G1/2	3.13
GD130	130:1	1040	NPT1/2	NPT3/8	G1/2	2.4
GD175	175:1	1400	NPT3/8	M14X1.5	G1/2	1.81
GD255	255:1	2040	NPT1/4	M14X1.5	G1/2	1.23
GD400	400:1	3200	NPT1/4	M14X1.5	G1/2	0.79

*Max. outlet pressure at an air drive of 8 bar/116 PSI

**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI

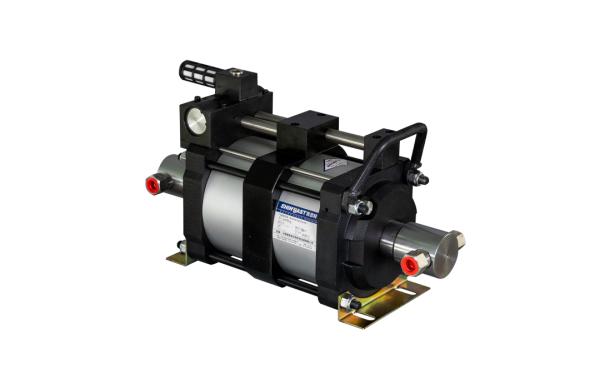

Air Driven Liquid Pump-G-2 Series

Technical Data

TYPE	Pressure Ratio	MAX Outlet Pressure(bar)*	Connection Inlet A	Connection Outlet B	Air drive	MAX Flow (L/min)**
G130-2	260：1	2080	NPT1/4	M14x1.5	PT1/2	1.29
G175-2	350：1	2800	NPT1/4	M14x1.5	PT1/2	0.94
G255-2	510：1	4080	NPT1/4	M14x1.5	PT1/2	0.65
G400-2	800:1	6400	NPT1/4	M14x1.5	PT1/2	0.42
