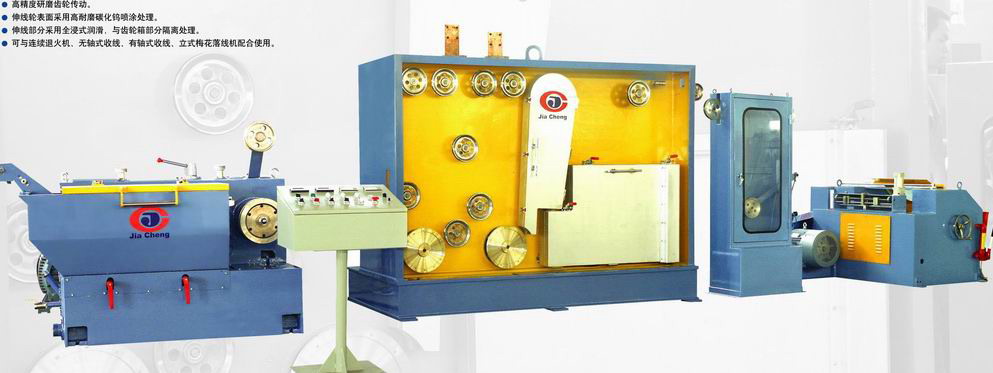

Intermediate copper wire drawing machine with continuous annealer - JCJX-9DH

Intermediate copper wire drawing machine with continuous annealer For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale Intermediate copper wire drawing machine with continuous annealer, Made in China, High Quality Products!, China wire drawing machine with continuous anneal, cable making equipment Supplier, Manufacturer.

Product Description
Main usage: It is applicable to draw copper wire from max.2.5~3.5mm to 1.1~2.8mm

Main feature:
1) Double inverter control, tension auto adjusting .
2) Unify 250 casr-iron main frame, precision machinery, no shock
3) Capstan treated with wear-resistan tungsten
4) Suitable for continuous annealer, take up machine with and without shalf, coiler machine.

Technical parameter:

9DHIntermediate wire drawing machine
1:Inverter Control
Double inverter control
2:Inlet Dia
2.5~3.5mm
3:Outlet Dia
1.1~2.8mm
4:Max Dia No
9
5:Max line speed(m/min)
1200m/min
6:Body structure
ironed cast
7:Drawing Capstan
tungsten plasma capstan
8:Slip ratio of m/c
18%
9:Main motor power(k w)
55kw
10:Take-up motor
15kw
11:Fix speed capstan Dia(mm)
300mm
12:Transmission type
by gear
13:Take-up bobbin size(mm)
500/630mm
14:Traversing type
motor type
15:Bobbin loading & unloading type
pneumatic type
16:Tension control
air pressure type
17:Lubrication type
full immersion
18:Brake
disc brake
Qnline Continuous Annealer
1:Machine structure
horizontal
2:Annealing wheel Dia
350
3:protection type
steam or nitrogen
4:Annealing Voltage(V)
65
5:Annealing current(A)
2500
