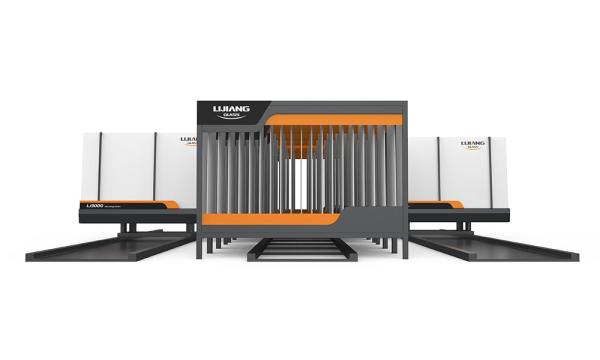

Intelligent Glass Storage and Sorting System
EG-GSS2535
Glass size:Max 2500*3500*12mm
Average sorting speed:4pcs/min
Glass loss rate:0.1%
Glass automatic access, orderly sorting and storage, intelligent precise pairing, digital production control and monitoring MES system.
• Adopts scanning and photography technology, can obtain the glass order information from ERP system by reading the two-dimensional code,automatically compares the data and matches to the IG line.;
• Siemens control system and servo dual-drive control mode are adopted to ensure high-speed and accurate operation of the car;
• The track adopts high precision rack and straight track to ensure the car running smoothly with low noise at high speed;
• A positioning stopper device is set at the end of the storage cage grid, which is convenient for small size multi-piece glass storage;
• MES system monitors the matching status of original glass pieces of production orders in real time, and orderly outputs them to the next process according to production instructions;
• The storage and sorting system has complete safety protection facilities to ensure safe and reliable operation of the equipment;
• Soft material casing is used to avoid scratches on glass surface in the process of transportation.
No. | Item. | Parameter |
1 | Glass size | Max.2500mm×2200mm×12mm，Min.450mm×300mm×3mm |
2 | Storage cage size | 4000mm(L)×2500mm(W)×2200mm(H) |
3 | Average sorting speed | 4pcs/min |
4 | Transfer trolley speed | 3m/s |
5 | Matching accuracy | 100% |
6 | Glass loss rate | 0.1% |
Related Products

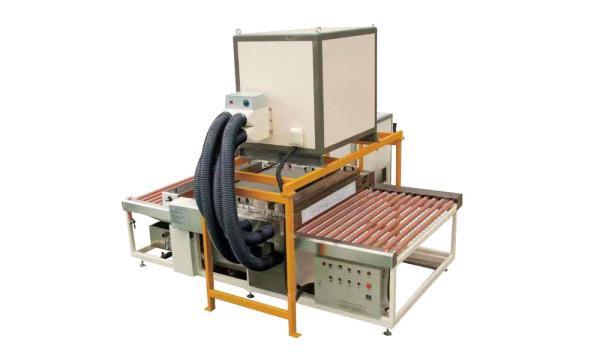

Horizontal Glass Washing and Drying Machine
