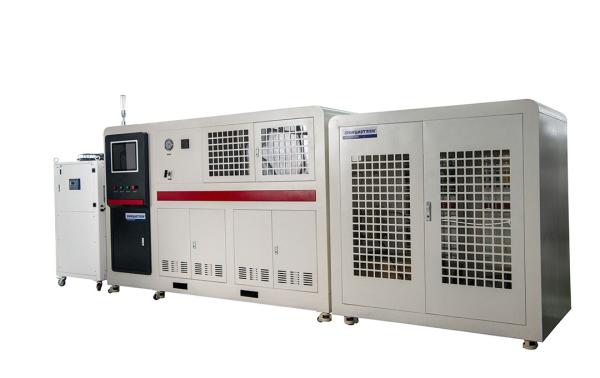

Impulse Test Machine

Shineeast impulse test machine is mainly used for pressure testing and destructive testing for kinds of rubber hoses, automobile flexible hose, PE pipe, UPVC pipes, hydraulic hose assembly, metal pipelines, steel coil reinforced pipe etc.

Application:

Automobile steering pipe, brake pipe, air conditioning pipe, fuel pipe, cooling water pipe, radiator hose, heating hose, air filter hose, PE pipes, UPVC pipes, worm gear, booster system hose, engineering hydraulic hose, aviation hose and manifold, hard pipe or connector, heat exchanger, air conditioner, filter, etc.

Reference standard:

GB/T7939 GB/T5568 GB/T3683 GB/T12722 GB/T14904 GB/T12722 GB/T20461 GB16897 GB/T15908 GB/T5568 GB/T10544 GB/

T7127.1-2000 ISO6803 ISO6802 ISO11425 ISO6772 TL82415 TL52361 ES 6G91-3A719-AA SAE J1405 SAE J343

Main technical parameters:

◎ Maximum impulse pressure: 80MPa; pressure display accuracy: 0.1MPa

◎ Impulse frequency: 0.5-1.25Hz

◎ Vibration frequency: 10-50Hz

◎ Bending frequency: 0.5-3.0Hz

◎ Test medium: hydraulic oil or brake fluid

◎ Oil temperature: ambient temperature ± 150 ℃

◎ Cycle times: ＞ 10 million times

◎ Number of samples: 2-8 (depending on the total volume and physical characteristics of the test pieces)

◎ Test waveform: square wave, trapezoidal wave, triangular wave, sine wave

◎ Installation angle: 90 degrees or 180 degrees

◎ Interface spacing: ＞ 90mm

◎ Control mode: industrial personal computer

◎ Cooling mode of power system: water cooling
