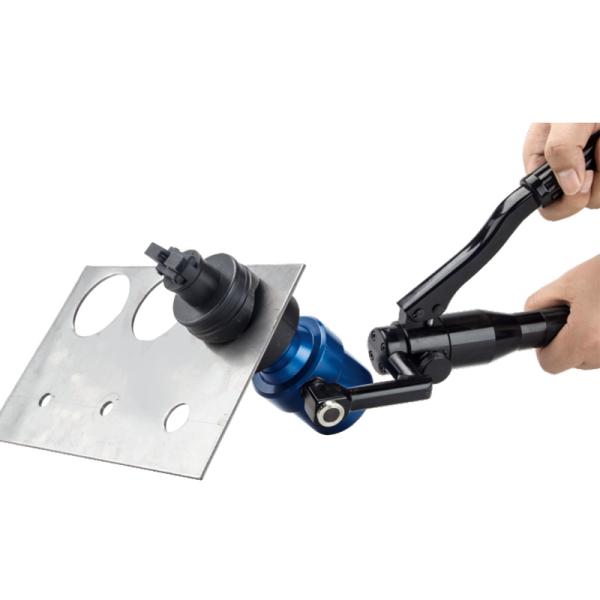

HYDRAULIC PUNCH DRIVER with new SPEED PUNCH System
WK-9AL
● with high strength aluminum alloy body, easy to handle
● compact body, huge power-two stage hydraulic system to deliver fast feed and power stroke
● 360°rotatable working head, widely used in different applications.
the working head inlay the spacer to protect the aluminum head
| Rated pressure: | 86kN |
| Stroke: | 25mm |
| Max round punch size: | 61.5 mm dia In the 3.5mm mild steel |
| Temperature: | -20℃-50℃ |
| Weight of box: | 355X102X123mm |
| Accessories: | |
| Round Knockout Punches: | 22.5mm,28.3mm,34.6mm,43.2mm,49.6mm,61.5mm |
| Speed lock: | 1pc |
| Speed small draw stud: | 1pc |
| Speed middle draw stud: | 1pc |
| Sealing kit: | 1set |
| Plastic box: | 1pc |
Note: Due to the different material and process of the iron plate, it is impossible to define the accurate hole diameter and plate thickness.
The actual test data shall prevail.
