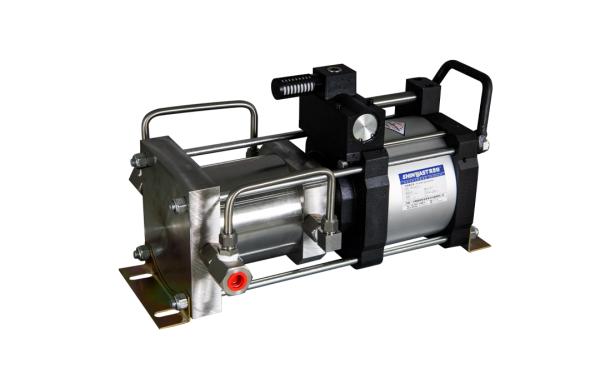

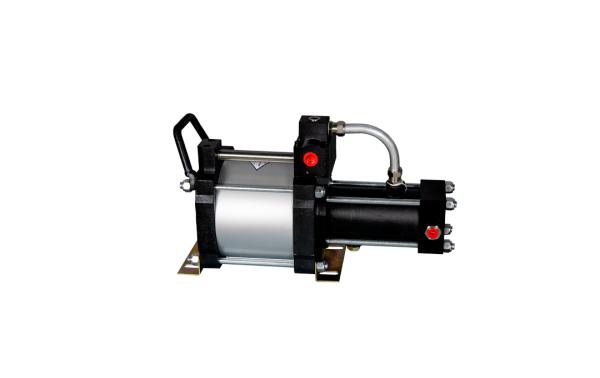

High Pressure Gas Boosters for Charging Up Nitrogen Cylinder
STA Series
SHINEEAST High Pressure Boosters provide for pressures up to 1400bar. Used for oil free compression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygen and natural gas. These boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.
Technical Parameters of STA Series Gas Boosters:
Type | Pressure ratio | Min. gas inlet pressure PA (bar) | Max. gas inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at air drive pressure of 6bar (L/min) |
STA0.6 | 0.6:1 | 0.1 | 4 | 4.8 | 0.6X PL | 1/2 / 1/2 | 1000 ( at PA of 6 bar ) |

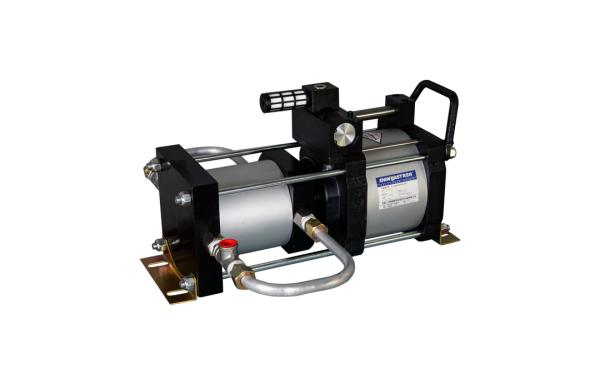

STA02 | 2：1 | 1.7 | 16 | 16 | 2X PL | 1/2 / 1/2 | 960(at PA of 6 bar ) |

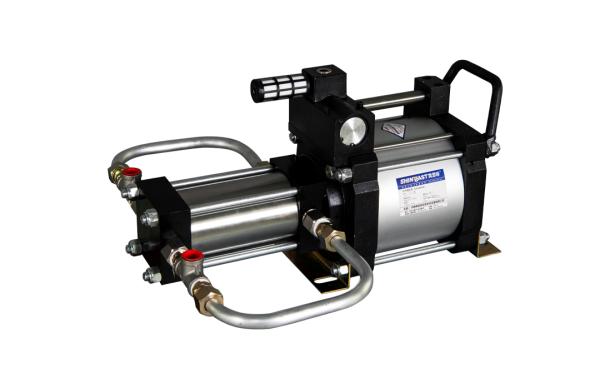

STA05 | 5：1 | 3.5 | 40 | 40 | 5XPL | 1/2 / 1/2 | 360(at PA of 6 bar ) |
STA06 | 6：1 | 4.5 | 48 | 48 | 6XPL | 3/8 / 3/8 | 110(at PA of 6 bar ) |
STA10 | 10：1 | 5.5 | 80 | 80 | 10XPL | 3/8/ 3/8 | 196(at PA of 20 bar ) |
STA25 | 25：1 | 10 | 200 | 200 | 25XPL | 1/4/ 1/4 | 81(at PA of 20 bar ) |
STA40 | 40：1 | 15 | 320 | 320 | 40XPL | 1/4/ 1/4 | 49(at PA of 20 bar ) |
STA60 | 60：1 | 25 | 480 | 480 | 60XPL | 1/4/ 1/4 | 61(at PA of 40 bar ) |
STA100 | 100：1 | 35 | 800 | 800 | 100XPL | 1/4/ M14X1.5 | 39(at PA of 40 bar ) |
