High Configuration 4D Lipolaser Body Slimming Machine
BR60
High Configuration 4D Lipolaser Body Slimming Machine
Lipolaser Instruction
Researched and designed by Dr. Nogier, Dr. Bahr and Mr.Bruno ( physicist and mathematician),we together make the 4D lipolaser come true.With four wavelength diode laser,it is more than effective to reduce the fat,but also improve the body healthy state.
635nm
(eg, fat reduce,increase cell-energy,Mitochondrien and ATP production,to supply body energy and promote metabolism)
660nm
(eg stimulate the lymph drainage and reduce the cellulite)
810nm
(eg for all bone-illnesses (Arthrosis, arthritis, carpal tunnel),stimulates reparative cells and microcirculation)
980nm
(eg same with 660nm,more effective to reduce fat and tighten the skin )
Applications
Fast fat reduce,weight loss
Skin tighten and lifting
Stimulate lymph drainage
Therapy for all bone illnesses
Increase cell energy,improve the metabolism
Features
4 wavelength lipolaser,635nm,660nm,810nm,980nm,working together
More effective to reduce fat,and more than weight loss
Smart operation system,easy to control
With large enough laser pads,to treat large target area.
All orginally imported diode lasers
Diode laser with long lifetime 8000-10000 hours

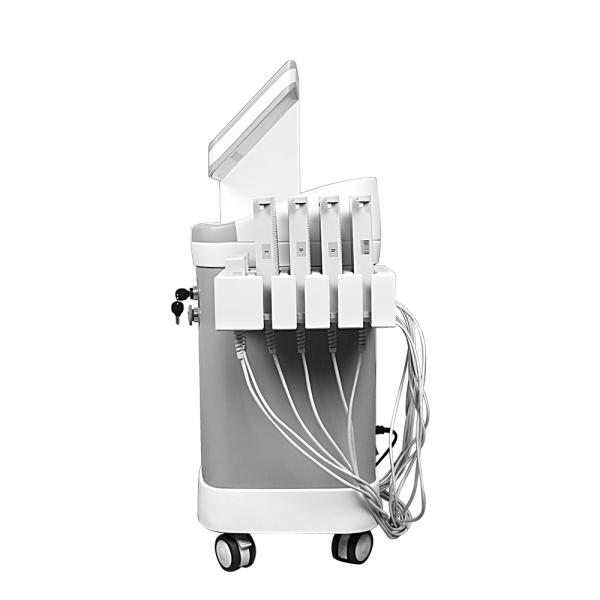

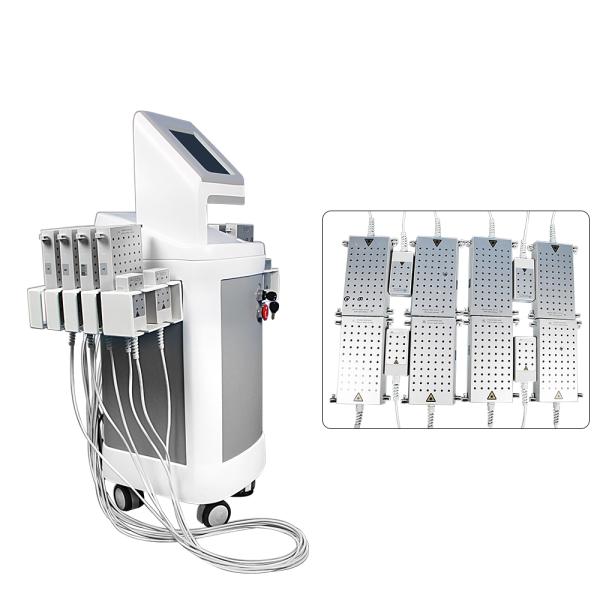

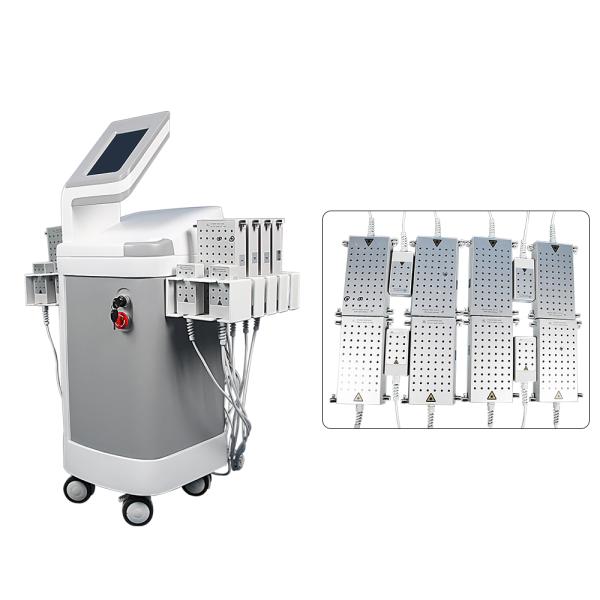

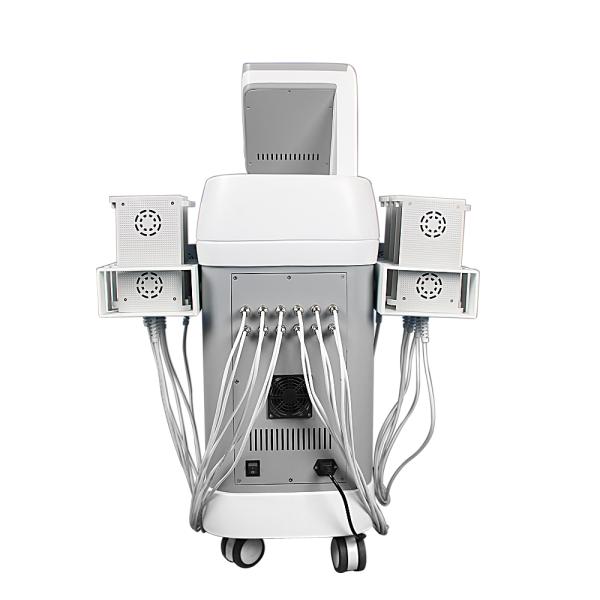

Parts Introduction
Parameters
Laser type | Diode laser |
Laser wavelength | 635nm,660nm,810nm,980nm |
Laser energy | 100mw-200mw |
Woking mode | Continue and pulsing |
Laser pads | 12pcs,8 big ones,4 small ones |
Laser diodes | 528pcs,eac big 60pcs,each samll 12pcs |
Voltage | 110-220V,50-60Hz |
Machine power | 400W |
Each laser pas power | 6W-12W |

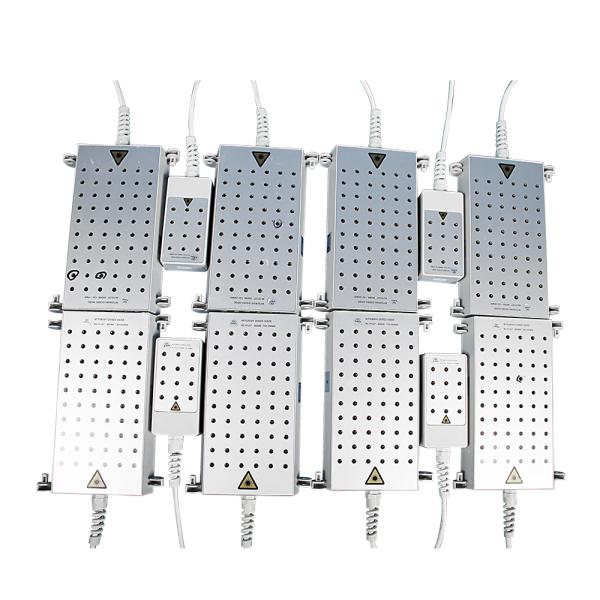

Lipolaser Pads
12 pads,8 big ones( each 60 diodes),4 small ones(each 12 diodes),total 528 diodes,each pad four wavelength
635nm,red laser,100-200mw
660nm,red laser,100-200mw
810nm,near infrared IR laser,100-00mw
980nm,IR laser,100-200mw
Each pad with design to conect with another one,so that it is easy to fasten them.
Mitsubishi diodes inside,lifetime is 8000-10000 hours.
Cooling system with cooper sylinder and fans.
