Heat Exchanger Tube Expansion Machine
Shineeast offers a wide range of equipment designed for hydraulic expansion of heat exchanger tubes in tube sheets.
Hydro is the direct application of high internal hydraulic pressure within a tube in order to form a tight joint between the tube and tube sheet. This pressure or expansive force is accurately set, measured, repeated and controlled. The pressure level can be calculated or determined empirically.
The expansion machine adopts high pressure generated by air driven liquid pump to eliminate the gap between tube sheet and heat exchanger, which solves the problem of traditional machinery tension being uneven, easy to scratch and low efficiency.
Reference standard:
GB/T151-1999

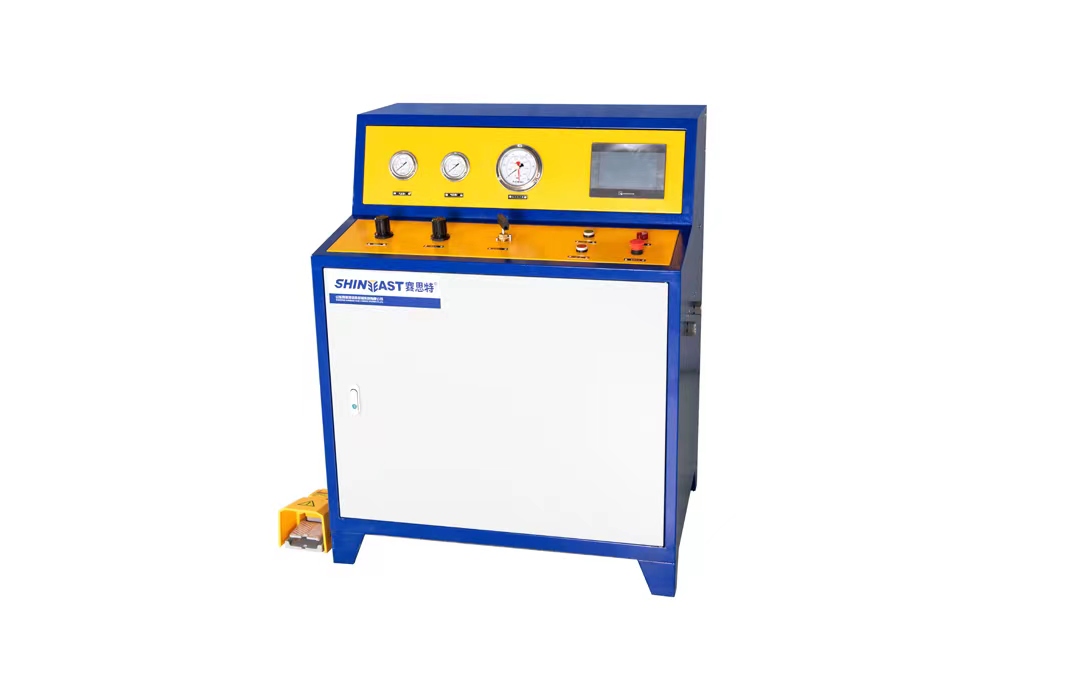

Shineeast hydraulic expansion machine is one special expansion machine which is used for expanding and connecting the tube and tube sheet during manufacturing heat exchanger, condenser and high pressure heater etc.
The machine consists of pneumatic power station, electrical control system and expansion tools.
Technical parameters:
Rated expansion pressure: 400 bar
Max. expansion pressure: 480 bar
Expansion speed: 5-10times/mim
Medium: city water
Min. expansion hole diameter: ﹥10 mm
Equipment weight: 95KG
Electricity power: 220V
Drive air pressure: 5-8 bar
Control type: PLC control
Equipment features:
▲ Time of pressure-holding can be set arbitrarily, ensure expansion quality; pressurizing and pressure-unloading is quickly, to improve expansion speed.
▲ The entire thickness expansion for 25-150mm thickness tube sheet at one time
▲ The entire thickness expansion for the middle tube sheet of any depth or multi-tube sheet heat exchanger
▲ After expansion, the residual stress of the parts is low, difficult to generate gap corrosion
▲ After the expansion of heat exchanger, the axial direction is not elongated but slightly contracted, which is beneficial to reduce the operating noise
▲ Expansion joint pollution-free, expansion will be not affected after welding.
▲ The edge of the heat exchanger with tube box can be expanded directly, which is very convenient
▲ Expansion speed is quickly, 4-8 tube heads per minute
