Glass Cutting Machine

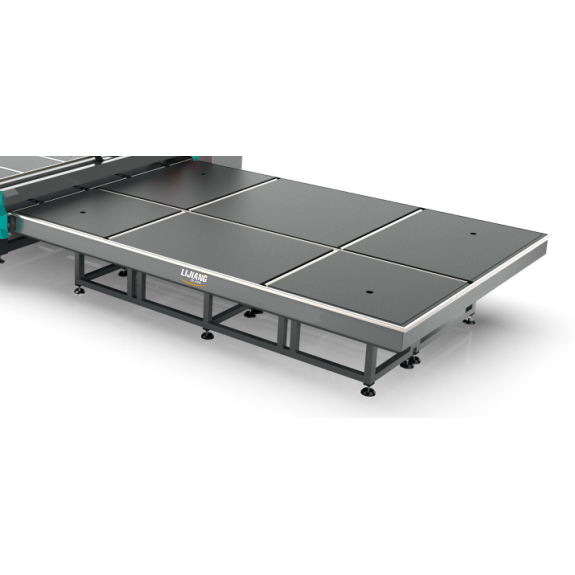

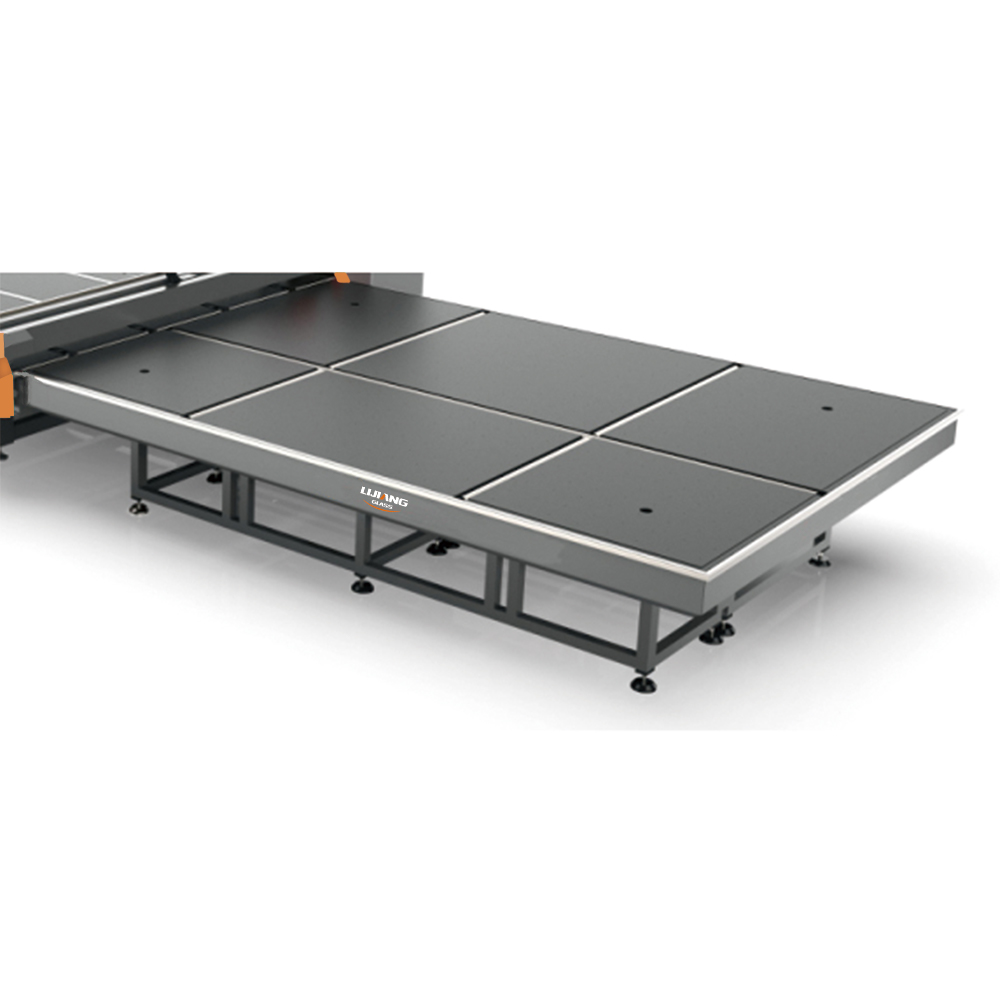

Air-floated breaking table is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system.

1.Equipment Introduction

①No special requirements for operators, simple operation and easy management;

②Safe, efficient and fully automatic mounting table effectively ensures the safety of operation and prevents glass from breaking. The fully automatic conveying device reduces the workload of operators;

③High cutting accuracy, good stability, can meet all kinds of production needs, effectively guarantee the processing quality of the later process and reduce the processing difficulty;

④High IQ cutting machine optimization software can greatly improve glass utilization rate and reduce production costs. Powerful gallery can ensure that equipment can cut various shapes of glass to meet the cutting requirements of various orders;

⑤The automatic oil injection and pressure adjustment function of the cutting machine can effectively ensure the stability and cutting effect of the cutting machine glass.

2.Electrical part：

1)、Contactors: Renmin/Zhengtai

2)、Circuit Breaker: Renmin/Zhengtai

3)、Button: Renmin/Zhengtai

4)、Main solenoid valve: Airtac

5)、Other Pneumatic Components: Deke/Shengguan

6)、Fan:Liyuan

3.Mechanical part；

1)、Working table: Waterproof High Density Plate

2)、Table: Imported industrial felt (black)

3)、Breaking bar: solid wood (natural color)

4.Technical parameter of Air-floated breaking table：

1)、The line realizes the functions of full-automatic loading,conveying, automatic cutting machine and air-floated breaking.

2)、Operator: Upload: 0 people (full-automatic stage without personnel operation);

Cutting: 1 person (knows basic computer operation, has glass cutting experience);

Fragmentation: 2 persons (with glass braking experience)

1)、Breaking bar: 2+1 type

2)、Table Size: 4300 *3200mm

3)、Glass thickness:3-19mm

4)、Power: 4kw

5)、Table height: 900 + 20mm
