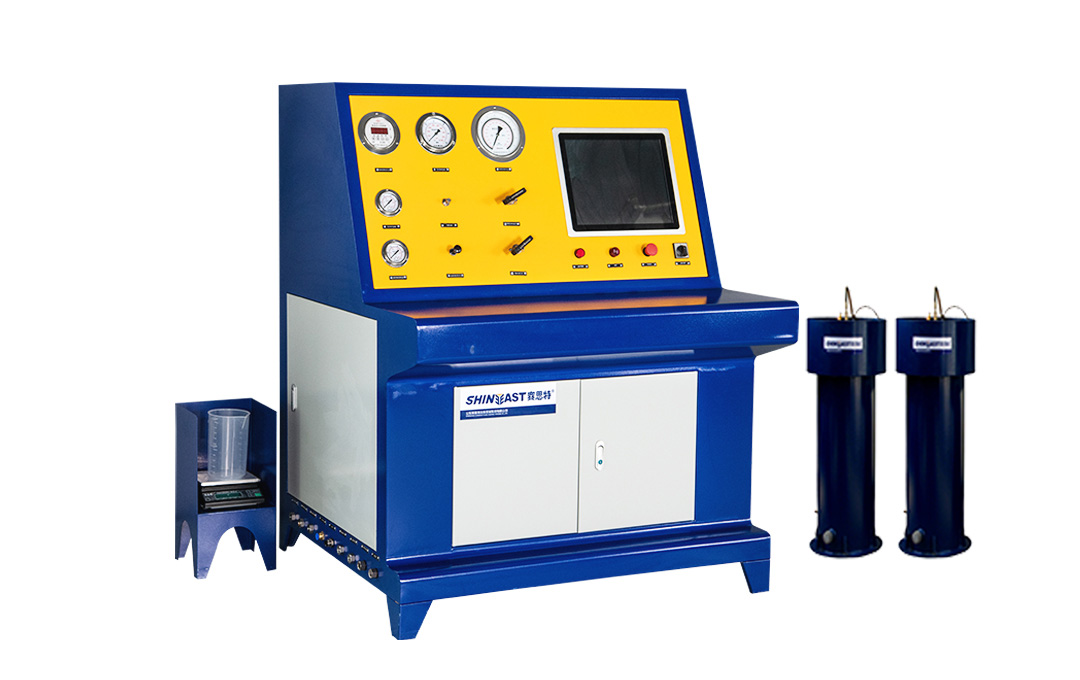

Gas Cylinder Test Equipment
Testing equipment shall refer to relevant national standards
GB24162-2009 Periodic Inspection and Evaluation of Compressed Natural Gas Cylinders with Metal Liner and Filament Ring Winding for Automobile
GB7144 Gas Cylinder Color Mark
GB8335 Special Threads for Gas Cylinders
GB/T8336 Special Thread Gauges for Gas Cylinders
GB/T925 Hydrostatic Test Method for Gas Cylinders
GB12135 Technical Conditions for Periodic Gas Cylinder Inspection Station GB/T12137 Test Method for Gas Cylinder Tightness
GBI5382 General Specification for Gas Cylinder Valves
GBI7258 Compressed Natural Gas Cylinder for Automobile
GB17,926 Compressed Natural Gas Cylinder Valves for Vehicles
GB19533 Periodic Inspection and Evaluation of Compressed Natural Gas Cylinders for Automobiles
JB4730-94 Nondestructive Testing of Pressure Vessels
TSGZ700 Standard Rules for Inspection and Testing Institutions of Special Equipment TSGR0009-2009 Regulations on Safety Supervision of Gas Cylinders issued by the State Administration of Quality and Technology Supervision on April 24, 2003 No. 46
Test range:
The test line is applicable to the regular inspection and evaluation of compressed natural gas cylinders, steel lined circumferential wound cylinders of different types and specifications, with the nominal working pressure of 16-25MPa and the nominal volume of 30-230L.
1. Technical parameters of natural gas cylinder:
① Outer diameter of gas cylinder: φ 219-φ426mm
② Cylinder length: 600-2000mm
③ 3 Weight of gas cylinder: ≤ 160Kg
2. Cylinder shape: form A (bottom closing), form B (concave bottom)
Performance:
1. Meet the annual inspection of gas cylinders for vehicles.
2. It is suitable for the comprehensive online inspection of gas cylinders of different specifications, and meets the requirements of relevant national regulations and standards for the inspection of natural gas cylinders.
3. The test line has a certain automatic operation ability to realize flow process, greatly improve the test efficiency and ensure the test quality
