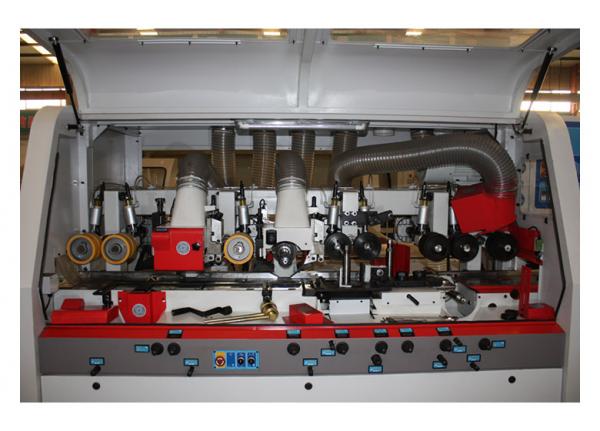

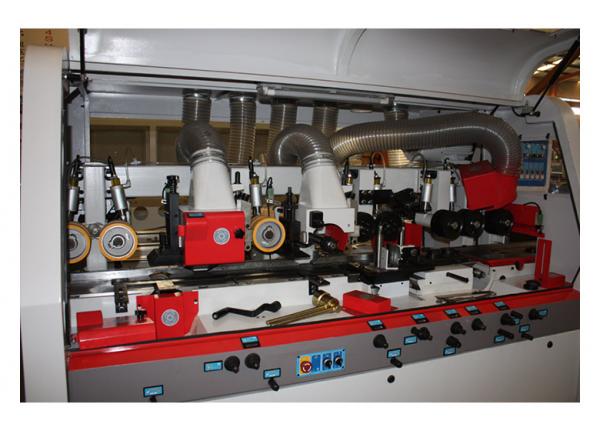

Four Sided Wood Planer for Alu-wood Win-door

LM-620

Four Sided Wood Planer for Alu-wood Win-door
Four Sided Wood Planer for Alu-wood Win-door
Four Sided Wood Planer for Alu-wood Win-door
Four Sided Wood Planer for Alu-wood Win-door
Get Quote

1. Adopt stepless speed regulation with the feeding speed of 7-28 m/ min
2. Each spindle is driven by an independent motor with strong cutting force
3. Spindle adjustment is in the front with easy operation.
4. Adopt electroplating countertops with good wear resistance
5. The lower initiative rollers improve the feeding effect
6. Configured Chint electrical components with strong stability
7. Fully enclosed safety shield effectively avoid sawdust flying and isolate noise and protect the operator
8. The feed wheel of pneumatic pressure type can adjust the clamping force by stages, which is good for the smooth feeding for the timber profile with different thickness
9. Configured auxiliary device for short material to promote its smooth feeding

Working width

25-200mm

Working thickness

8-140mm

Length of working table

1800mm

Feeding speed

7-28m/min

Spindle diameter

Φ40mm

Spindle rotational speed

6000r/min

Air pressure

0.6MPa
