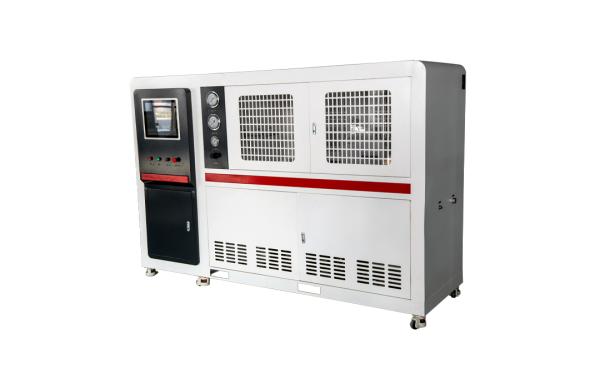

Fatigue Test Machine for Hydraulic Hoses
Computer Control
SHINEEAST fatigue test machine designed by our company is a high-performance test bench developed by absorbing foreign advanced experience and combining the actual needs of the corresponding industries in China. The main components of the equipment are imported pneumatic components - electrical proportional valves or imported servo valve components. Combined with the measurement and control software of NI, the whole equipment is easy to operate, stable in performance, and can be used for various pressure fatigue tests.
Application:
Automobile steering pipe, brake pipe, air conditioning pipe, fuel pipe, cooling water pipe, radiator hose, heating hose, air filter hose, worm gear, booster system hose, engineering hydraulic hose, aviation hose and manifold, hard pipe or connector, heat exchanger, air conditioner, filter, etc.
Reference standard:
GB/T7939 GB/T5568 GB/T3683 GB/T12722 GB/T14904 GB/T12722 GB/T20461 GB16897 GB/T15908 GB/T5568 GB/T10544 GB/T7127.1-2000 ISO6803 ISO6802 ISO11425 ISO6772 TL82415 TL52361 ES 6G91-3A719-AA SAE J1405 SAE J343
Main technical parameters:
Maximum fatigue pressure: 100MPa; pressure display accuracy: 0.1MPa
Fatigue frequency: 0-0.5HZ
Test medium: hydraulic oil or water
Medium temperature: ambient temperature to 150 ℃
Number of cycles:>100000
