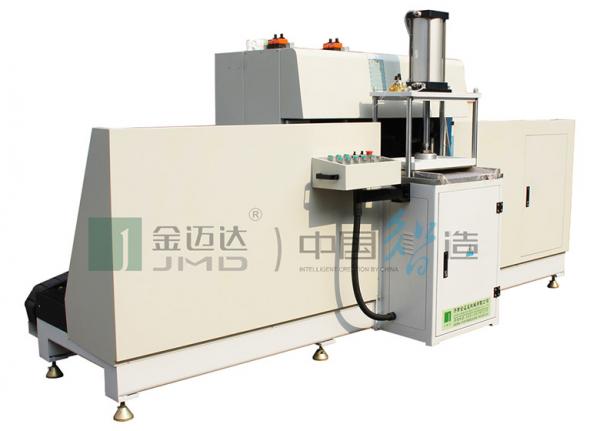

End Milling Machine for Aluminum Profile (Six blades)
LJX6A-250
1. Six independent cutters (one vertically mounted & 5 horizontally mounted) driven by six motors, easy to adjust
2. Two horizontally mounted cutters can be adjusted within the range of 180°
3. Worktable is fixed and the cutters are movable, achieve high processing precision
4. Worktable width is 500mm, processing several pieces of profiles per cycle, improving the output
5. Guide rail: HIWIN; Cable & electric wires: YiChu; Pneumatic components: AirTAC
Power supply | 380V/3Phase/50Hz |
Total power | 14.3kW |
Input power | 1.1kW |
Motor rotating speed | 2800r/min |
Air pressure | 0.5~0.8Mpa |
Spindle diameter | Ф32mm |
Cutter quantity | 6 pieces |
Cutter feeding stroke | 1650mm |
Cutter adjustment stroke | 80mm(horizontal direction)/280mm(longitudinal direction) |
