End Milling Machine for Aluminum Profile (Five blades) For Sale, China Supplier, Factory Price

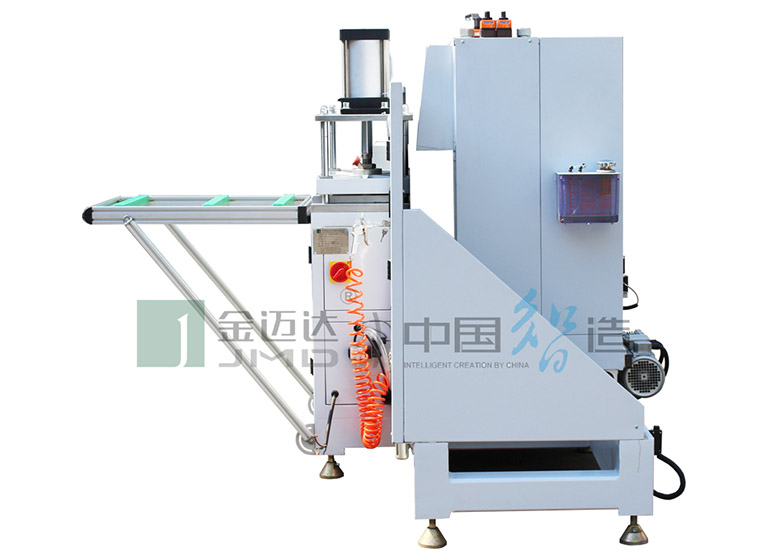

End Milling Machine for Aluminum Profile (Five blades)

LJX4-250

1. Wide worktable and long feeding stroke; process 6~10 profiles per cycle 2. Cutters can be adjusted up&down, left &right to fit for different kinds of aluminum profiles 3. Equipped with 4 horizontal cutters and 1 vertical blase, can process the strengthen mullion
4. Available to add the quantity of horizontal cutters to fit for more profiles, save time and improve the working efficiency
5. Equipped with phase sequence protector to ensure the safety of wire connecting. 6. Feeding speed and returning speed is adjustable, to improve the efficiency. 7. Low voltage electric components: OMRON/Schneider; Cable & electric wires: YiChu; Pneumatic solenoid valve: AirTAC

Power supply	380V/3Phase/50Hz
Input Power	9.55W
Air pressure	0.4~0.7Mpa
Motor rotating speed	2800r/min
Air consumption	20L/min
Worktable width	425mm
Blade specification	φ300xφ30x3.2
Feeding stroke	1060mm
Milling depth	65mm
Max milling height	150mm
Overall dimension	250021001550mm
Weight	1200Kg
Cutter specification	2pcs ofφ250φ326.5,1pcofφ250φ325 andφ250φ328
