ELECTRIC POWERED PRESS TOOL
CZ-1550

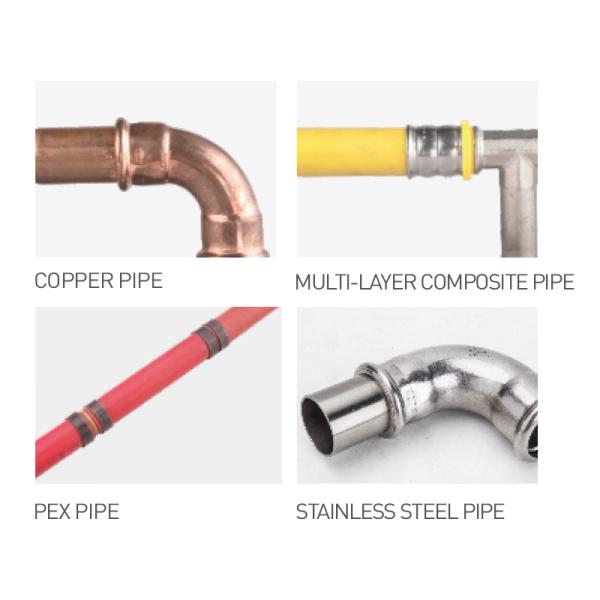

| Capacity: | 12-54mm for stainless steel pipe | Rated Power: | 490W |
| 12-108mm(1/2"-4") for PEX,Multi-layer and copper pipe | Voltage: | AC220V 50/60HZ (or AC 110V 50/60HZ) | |
| Output: | 32kN | Weight: | 4.1kgs(without jaw) |
| Stroke: | 40mm | Size of tool: | 456 x 81 x 130mm |
| Cycle time: | 3S(DN25) | Hydraulic oil: | Shell Tellus S2V HV15 130ml |
| Accessories: | |||
| MODEL NO. | DESCRIPTION | Weight(kgs) | |

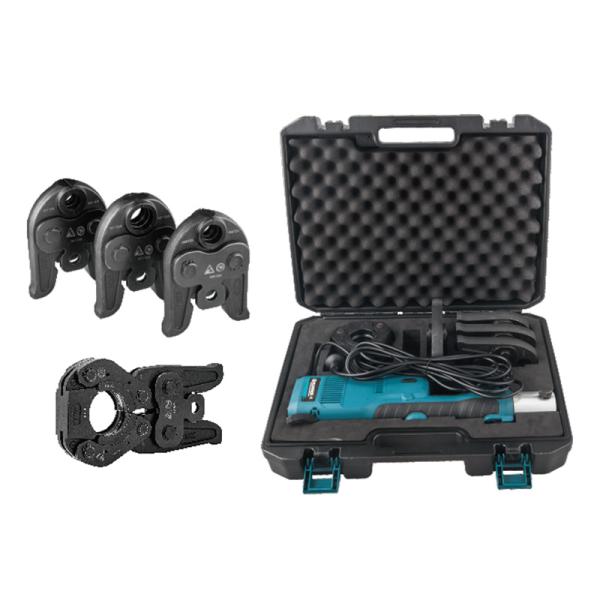

| CZ-1550 | CZ-1550 Press Tool Kit without jaws | 8.15 | |
| Plastic case | 3.2 | ||
